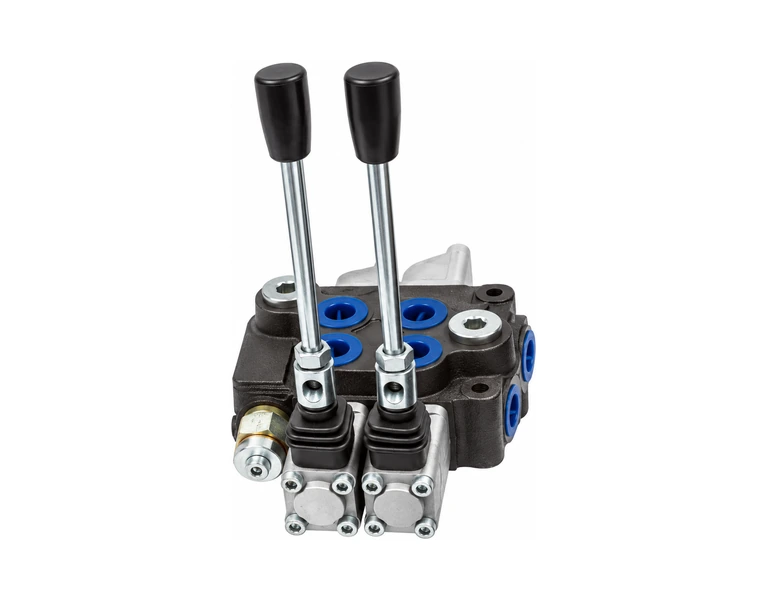

Sectional Directional Valves.
Configurable multi-function hydraulic control.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Circuit function and number of sections
02
Flow, pressure and port sizes
03
Control method and supply voltage if applicable
04
Circuit diagram and load-holding requirements
Sectional valve series components.
Inlet, working and outlet sections are separate components of each listed sectional-valve series. Series flow and port sizes describe the indicated configuration; they are not a rating of every possible assembled bank. Confirm spool functions, pressure, reliefs, tie rods, power-beyond arrangement and completed-bank dimensions.
| Part code | Part type | Series | return port size inch | series flow l min (L/min) | work port size inch |
|---|---|---|---|---|---|
| Q30-IN | inlet section | Q30 | 1/2 | 40 | 3/8 |
| Q30-STND | standard working section | Q30 | 1/2 | 40 | 3/8 |
| Q30-PR | port-relief working section | Q30 | 1/2 | 40 | 3/8 |
| Q30-OUT | outlet section | Q30 | 1/2 | 40 | 3/8 |
| Q50-IN | inlet section | Q50 | 1/2 | 60 | 1/2 |
| Q50-STND | standard working section | Q50 | 1/2 | 60 | 1/2 |
| Q50-PR | port-relief working section | Q50 | 1/2 | 60 | 1/2 |
| Q50-OUT | outlet section | Q50 | 1/2 | 60 | 1/2 |
| Q80-IN | inlet section | Q80 | 3/4 | 90 | 1/2 |
| Q80-STND | standard working section | Q80 | 3/4 | 90 | 1/2 |
| Q80-PR | port-relief working section | Q80 | 3/4 | 90 | 1/2 |
| Q80-OUT | outlet section | Q80 | 3/4 | 90 | 1/2 |
| Q130-IN | inlet section | Q130 | 1 | 150 | 1 |
| Q130-STND | standard working section | Q130 | 1 | 150 | 1 |
| Q130-PR | port-relief working section | Q130 | 1 | 150 | 1 |
| Q130-OUT | outlet section | Q130 | 1 | 150 | 1 |
