Valves, Manifolds & Controls

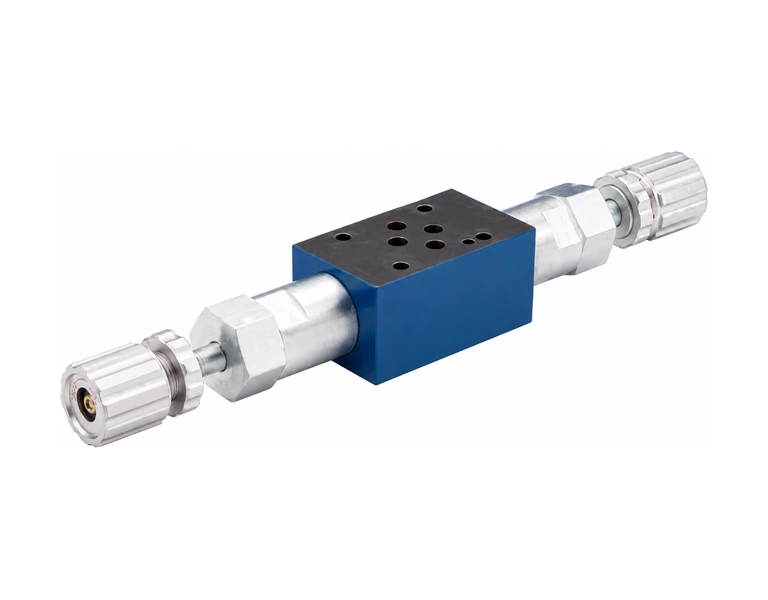

FT3 - NG6 STACKABLE VALVES.
Hydraulic control components selected to the circuit function, flow and pressure.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Circuit function and number of sections
02
Flow, pressure and port sizes
03
Control method and supply voltage if applicable
04
Circuit diagram and load-holding requirements
FT3 NG6 STACKABLE VALVES exact configuration.
Stackable valve functions and controlled flow paths for the listed NG interface size. Match A, B, P and T paths and any pilot/drain requirements to the complete manifold circuit. Confirm rated flow, working pressure, adjustment range and stack dimensions for the exact model.
| Part code | Nominal size reference | paths | Valve function |
|---|---|---|---|
| FT3-CP-A | NG6 | A1→A | pilot-operated check |
| FT3-CP-B | NG6 | B1→B | pilot-operated check |
| FT3-CP-AB | NG6 | Confirm | Confirm |
| FT3-FX-A | NG6 | A→A1 | throttle check |
| FT3-FX-B | NG6 | B→B1 | throttle check |
| FT3-FC-A | NG6 | A1→A | throttle check |
| FT3-FC-B | NG6 | B1→B | throttle check |
| FT3-FC-AB | NG6 | A1→A | throttle check |
| FT3-RO-A | NG6 | Confirm | Confirm |
| FT3-RO-B | NG6 | Confirm | Confirm |
| FT3-RO-P | NG6 | Confirm | Confirm |
| FT3-MP-B | NG6 | Confirm | Confirm |
| FT3-MP-BA | NG6 | Confirm | Confirm |
| FT3-MP-AB | NG6 | Confirm | Confirm |
| FT3-CO-AB | NG6 | Confirm | Confirm |
| FT3-CO-B | NG6 | Confirm | Confirm |
| FT3-MO-P | NG6 | Confirm | Confirm |
| FT3-MP-P | NG6 | Confirm | Confirm |
