AFRICAN HOSE SOLUTIONSREPRESENTATIVE CONFIGURATION
Tubing, Flanges & Pipe Fittings

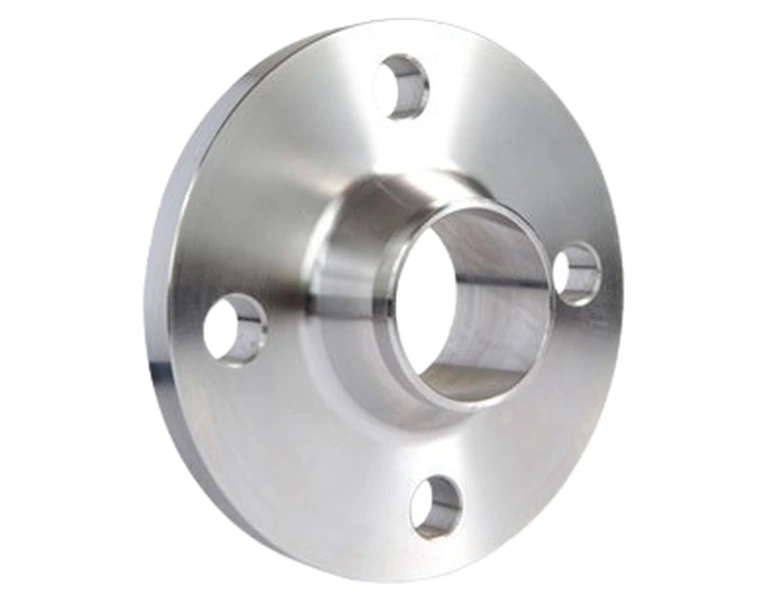

Weld-Neck Stainless Steel Flanges.
Specify the flange standard, size, drilling, facing and material for the mating installation.
Share your dimensions, drawing or part details with your enquiry.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Standard, nominal size and pressure class
02
Material grade and wall thickness
03
Facing, drilling and connection type
04
Drawing or dimensions of the mating connection
Weld-neck flange construction dimensions.
Weld-neck flange construction dimensions with large-bore series kept separate. Confirm material grade and the applicable current dimensional and pressure-temperature standard. The printed A/SA 182 reference does not establish a supplied grade or certification. Inside bore is purchaser-specified from NPS 14 upward; provide pipe schedule or bore requirement. Large-bore A/B series are not interchangeable; unresolved rows are omitted.
| Bolt circle k mm | Bolt hole count | Bolt hole diameter i mm | Construction | Flange od mm | Hub diameter m mm | Inside bore selection | Inside diameter j mm | Length through hub h mm | Mass kg | Minimum thickness b mm | Nominal pipe size inch | Raised face diameter g mm | pattern | series | Weld bevel diameter a mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60.3 | 4.0 | 15.88 | weld neck | 90.0 | 30.0 | Confirm | 15.8 | 46.0 | 0.51 | 9.6 | 1/2 | 34.9 | ASTM/ASME A/SA182 - 150LBS | Confirm | 21.3 |
| 69.9 | 4.0 | 15.88 | weld neck | 100.0 | 38.0 | Confirm | 20.9 | 51.0 | 0.73 | 11.2 | 3/4 | 42.9 | ASTM/ASME A/SA182 - 150LBS | Confirm | 26.7 |
| 79.4 | 4.0 | 15.88 | weld neck | 110.0 | 49.0 | Confirm | 26.6 | 54.0 | 1.07 | 12.7 | 1 | 50.8 | ASTM/ASME A/SA182 - 150LBS | Confirm | 33.4 |
| 88.9 | 4.0 | 15.88 | weld neck | 115.0 | 59.0 | Confirm | 35.1 | 56.0 | 1.4 | 14.3 | 1-1/4 | 63.5 | ASTM/ASME A/SA182 - 150LBS | Confirm | 42.2 |
| 98.4 | 4.0 | 15.88 | weld neck | 125.0 | 65.0 | Confirm | 40.9 | 60.0 | 1.81 | 15.9 | 1-1/2 | 73.0 | ASTM/ASME A/SA182 - 150LBS | Confirm | 48.3 |
| 120.7 | 4.0 | 19.05 | weld neck | 150.0 | 78.0 | Confirm | 52.5 | 62.0 | 2.59 | 17.5 | 2 | 92.1 | ASTM/ASME A/SA182 - 150LBS | Confirm | 60.3 |
| 139.7 | 4.0 | 19.05 | weld neck | 180.0 | 90.0 | Confirm | 62.7 | 68.0 | 4.28 | 20.7 | 2-1/2 | 104.8 | ASTM/ASME A/SA182 - 150LBS | Confirm | 73.0 |
| 152.4 | 4.0 | 19.05 | weld neck | 190.0 | 108.0 | Confirm | 77.9 | 68.0 | 5.18 | 22.3 | 3 | 127.0 | ASTM/ASME A/SA182 - 150LBS | Confirm | 88.9 |
| 177.8 | 8.0 | 19.05 | weld neck | 215.0 | 122.0 | Confirm | 90.1 | 70.0 | 5.45 | 22.3 | 3-1/2 | 139.7 | ASTM/ASME A/SA182 - 150LBS | Confirm | 101.6 |
| 190.5 | 8.0 | 19.05 | weld neck | 230.0 | 135.0 | Confirm | 102.3 | 75.0 | 7.32 | 22.3 | 4 | 157.2 | ASTM/ASME A/SA182 - 150LBS | Confirm | 114.3 |
| 215.9 | 8.0 | 22.23 | weld neck | 255.0 | 164.0 | Confirm | 128.2 | 87.0 | 8.91 | 22.3 | 5 | 185.7 | ASTM/ASME A/SA182 - 150LBS | Confirm | 141.3 |
| 241.3 | 8.0 | 22.23 | weld neck | 280.0 | 192.0 | Confirm | 154.1 | 87.0 | 11.26 | 23.9 | 6 | 215.9 | ASTM/ASME A/SA182 - 150LBS | Confirm | 168.3 |
| 298.5 | 8.0 | 22.23 | weld neck | 345.0 | 246.0 | Confirm | 202.7 | 100.0 | 17.68 | 27.0 | 8 | 269.9 | ASTM/ASME A/SA182 - 150LBS | Confirm | 219.1 |
| 362.0 | 12.0 | 25.4 | weld neck | 405.0 | 305.0 | Confirm | 254.6 | 100.0 | 24.79 | 28.6 | 10 | 323.8 | ASTM/ASME A/SA182 - 150LBS | Confirm | 273.0 |
| 431.8 | 12.0 | 25.4 | weld neck | 485.0 | 365.0 | Confirm | 304.8 | 113.0 | 38.98 | 30.2 | 12 | 381.0 | ASTM/ASME A/SA182 - 150LBS | Confirm | 323.8 |
| 476.3 | 12.0 | 28.58 | weld neck | 535.0 | 400.0 | specified by purchaser; drawing/schedule required | Confirm | 125.0 | 51.71 | 33.4 | 14 | 412.8 | ASTM/ASME A/SA182 - 150LBS | Confirm | 355.6 |
| 539.8 | 16.0 | 28.58 | weld neck | 595.0 | 457.0 | specified by purchaser; drawing/schedule required | Confirm | 125.0 | 64.41 | 35.0 | 16 | 469.9 | ASTM/ASME A/SA182 - 150LBS | Confirm | 406.4 |
| 577.9 | 16.0 | 31.75 | weld neck | 635.0 | 505.0 | specified by purchaser; drawing/schedule required | Confirm | 138.0 | 74.84 | 38.1 | 18 | 533.4 | ASTM/ASME A/SA182 - 150LBS | Confirm | 457.0 |
| 635.0 | 20.0 | 31.75 | weld neck | 700.0 | 559.0 | specified by purchaser; drawing/schedule required | Confirm | 143.0 | 89.36 | 41.3 | 20 | 584.2 | ASTM/ASME A/SA182 - 150LBS | Confirm | 508.0 |
| 749.3 | 20.0 | 34.93 | weld neck | 815.0 | 663.0 | specified by purchaser; drawing/schedule required | Confirm | 151.0 | 119.66 | 46.1 | 24 | 692.2 | ASTM/ASME A/SA182 - 150LBS | Confirm | 610.0 |
| 806.4 | 24.0 | 34.93 | weld neck | 870.0 | 676.0 | specified by purchaser; drawing/schedule required | Confirm | 119.0 | 150.17 | 66.7 | 26 | 749.0 | ASTM/ASME A/SA182 - 150LBS | A | 660.4 |
| 744.5 | 36.0 | 22.23 | weld neck | 785.0 | 684.0 | specified by purchaser; drawing/schedule required | Confirm | 87.0 | 63.2 | 39.8 | 26 | 711.0 | ASTM/ASME A/SA182 - 150LBS | B | 661.9 |
| 863.6 | 28.0 | 34.93 | weld neck | 925.0 | 727.0 | specified by purchaser; drawing/schedule required | Confirm | 124.0 | 171.36 | 69.9 | 28 | 800.0 | ASTM/ASME A/SA182 - 150LBS | A | 711.2 |
| 795.3 | 40.0 | 22.23 | weld neck | 835.0 | 735.0 | specified by purchaser; drawing/schedule required | Confirm | 94.0 | 72.9 | 43.0 | 28 | 762.0 | ASTM/ASME A/SA182 - 150LBS | B | 712.7 |
| 914.4 | 28.0 | 34.93 | weld neck | 985.0 | 781.0 | specified by purchaser; drawing/schedule required | Confirm | 135.0 | 200.22 | 73.1 | 30 | 857.0 | ASTM/ASME A/SA182 - 150LBS | A | 762.0 |
| 846.1 | 44.0 | 22.23 | weld neck | 885.0 | 787.0 | specified by purchaser; drawing/schedule required | Confirm | 98.0 | 79.8 | 43.0 | 30 | 813.0 | ASTM/ASME A/SA182 - 150LBS | B | 763.5 |
| 977.9 | 28.0 | 41.28 | weld neck | 1060.0 | 832.0 | specified by purchaser; drawing/schedule required | Confirm | 143.0 | 250.06 | 79.4 | 32 | 914.0 | ASTM/ASME A/SA182 - 150LBS | A | 812.8 |
| 900.1 | 48.0 | 22.23 | weld neck | 940.0 | 840.0 | specified by purchaser; drawing/schedule required | Confirm | 106.0 | 91.4 | 44.6 | 32 | 864.0 | ASTM/ASME A/SA182 - 150LBS | B | 814.3 |
| 1028.7 | 32.0 | 41.28 | weld neck | 1110.0 | 883.0 | specified by purchaser; drawing/schedule required | Confirm | 148.0 | 267.72 | 81.0 | 34 | 965.0 | ASTM/ASME A/SA182 - 150LBS | A | 863.6 |
| 957.3 | 40.0 | 25.4 | weld neck | 1005.0 | 892.0 | specified by purchaser; drawing/schedule required | Confirm | 109.0 | 109.7 | 47.7 | 34 | 921.0 | ASTM/ASME A/SA182 - 150LBS | B | 865.1 |
| 1085.8 | 32.0 | 41.28 | weld neck | 1170.0 | 933.0 | specified by purchaser; drawing/schedule required | Confirm | 156.0 | 316.3 | 88.9 | 36 | 1022.0 | ASTM/ASME A/SA182 - 150LBS | A | 914.4 |
| 1009.6 | 44.0 | 25.4 | weld neck | 1055.0 | 945.0 | specified by purchaser; drawing/schedule required | Confirm | 116.0 | 124.5 | 50.9 | 36 | 972.0 | ASTM/ASME A/SA182 - 150LBS | B | 915.9 |
| 1149.4 | 32.0 | 41.28 | weld neck | 1240.0 | 991.0 | specified by purchaser; drawing/schedule required | Confirm | 156.0 | 352.11 | 85.8 | 38 | 1073.0 | ASTM/ASME A/SA182 - 150LBS | A | 965.2 |
| 1070.0 | 40.0 | 28.58 | weld neck | 1125.0 | 997.0 | specified by purchaser; drawing/schedule required | Confirm | 122.0 | 146.3 | 52.5 | 38 | 1022.0 | ASTM/ASME A/SA182 - 150LBS | B | 968.2 |
| 1200.2 | 36.0 | 41.28 | weld neck | 1290.0 | 1041.0 | specified by purchaser; drawing/schedule required | Confirm | 162.0 | 379.8 | 88.9 | 40 | 1124.0 | ASTM/ASME A/SA182 - 150LBS | A | 1016.0 |
| 1120.8 | 44.0 | 28.58 | weld neck | 1175.0 | 1049.0 | specified by purchaser; drawing/schedule required | Confirm | 127.0 | 159.3 | 54.1 | 40 | 1080.0 | ASTM/ASME A/SA182 - 150LBS | B | 1019.0 |
| 1257.3 | 36.0 | 41.28 | weld neck | 1345.0 | 1092.0 | specified by purchaser; drawing/schedule required | Confirm | 170.0 | 435.33 | 95.3 | 42 | 1194.0 | ASTM/ASME A/SA182 - 150LBS | A | 1066.8 |
| 1171.6 | 48.0 | 28.58 | weld neck | 1225.0 | 1102.0 | specified by purchaser; drawing/schedule required | Confirm | 132.0 | 175.3 | 57.3 | 42 | 1130.0 | ASTM/ASME A/SA182 - 150LBS | B | 1069.8 |
| 1314.4 | 40.0 | 41.28 | weld neck | 1405.0 | 1143.0 | specified by purchaser; drawing/schedule required | Confirm | 176.0 | 484.15 | 100.1 | 44 | 1245.0 | ASTM/ASME A/SA182 - 150LBS | A | 1117.6 |
| 1222.4 | 52.0 | 28.58 | weld neck | 1275.0 | 1153.0 | specified by purchaser; drawing/schedule required | Confirm | 135.0 | 187.9 | 58.9 | 44 | 1181.0 | ASTM/ASME A/SA182 - 150LBS | B | 1120.6 |
| 1365.2 | 40.0 | 41.28 | weld neck | 1455.0 | 1197.0 | specified by purchaser; drawing/schedule required | Confirm | 184.0 | 518.15 | 101.6 | 46 | 1295.0 | ASTM/ASME A/SA182 - 150LBS | A | 1168.4 |
| 1284.3 | 40.0 | 31.75 | weld neck | 1340.0 | 1205.0 | specified by purchaser; drawing/schedule required | Confirm | 143.0 | 220.3 | 60.4 | 46 | 1235.0 | ASTM/ASME A/SA182 - 150LBS | B | 1171.4 |
| 1422.4 | 44.0 | 41.28 | weld neck | 1510.0 | 1248.0 | specified by purchaser; drawing/schedule required | Confirm | 191.0 | 572.87 | 106.4 | 48 | 1359.0 | ASTM/ASME A/SA182 - 150LBS | A | 1219.2 |
| 1335.1 | 44.0 | 31.75 | weld neck | 1390.0 | 1257.0 | specified by purchaser; drawing/schedule required | Confirm | 148.0 | 239.5 | 63.6 | 48 | 1289.0 | ASTM/ASME A/SA182 - 150LBS | B | 1222.2 |
| 66.7 | 4.0 | 15.88 | weld neck | 95.0 | 38.0 | Confirm | 15.8 | 51.0 | 0.78 | 12.7 | 1/2 | 34.9 | ASTM/ASME A/SA182 - 300LBS | Confirm | 21.3 |
| 82.6 | 4.0 | 19.05 | weld neck | 115.0 | 48.0 | Confirm | 20.9 | 56.0 | 1.34 | 14.3 | 3/4 | 42.9 | ASTM/ASME A/SA182 - 300LBS | Confirm | 26.7 |
| 88.9 | 4.0 | 19.05 | weld neck | 125.0 | 54.0 | Confirm | 26.6 | 60.0 | 1.64 | 15.9 | 1 | 50.8 | ASTM/ASME A/SA182 - 300LBS | Confirm | 33.4 |
| 98.4 | 4.0 | 19.05 | weld neck | 135.0 | 64.0 | Confirm | 35.1 | 64.0 | 2.06 | 17.5 | 1-1/4 | 63.5 | ASTM/ASME A/SA182 - 300LBS | Confirm | 42.2 |
| 114.3 | 4.0 | 22.23 | weld neck | 155.0 | 70.0 | Confirm | 40.9 | 67.0 | 3.06 | 19.1 | 1-1/2 | 73.0 | ASTM/ASME A/SA182 - 300LBS | Confirm | 48.3 |
| 127.0 | 8.0 | 19.05 | weld neck | 165.0 | 84.0 | Confirm | 52.5 | 68.0 | 3.4 | 20.7 | 2 | 92.1 | ASTM/ASME A/SA182 - 300LBS | Confirm | 60.3 |
| 149.2 | 8.0 | 22.23 | weld neck | 190.0 | 100.0 | Confirm | 62.7 | 75.0 | 5.31 | 23.9 | 2-1/2 | 104.8 | ASTM/ASME A/SA182 - 300LBS | Confirm | 73.0 |
| 168.3 | 8.0 | 22.23 | weld neck | 210.0 | 117.0 | Confirm | 77.9 | 78.0 | 7.32 | 27.0 | 3 | 127.0 | ASTM/ASME A/SA182 - 300LBS | Confirm | 88.9 |
| 184.2 | 8.0 | 22.23 | weld neck | 230.0 | 133.0 | Confirm | 90.1 | 79.0 | 8.17 | 28.6 | 3-1/2 | 139.7 | ASTM/ASME A/SA182 - 300LBS | Confirm | 101.6 |
| 200.0 | 8.0 | 22.23 | weld neck | 255.0 | 146.0 | Confirm | 102.3 | 84.0 | 11.3 | 30.2 | 4 | 157.2 | ASTM/ASME A/SA182 - 300LBS | Confirm | 114.3 |
| 235.0 | 8.0 | 22.23 | weld neck | 280.0 | 178.0 | Confirm | 128.2 | 97.0 | 15.12 | 33.4 | 5 | 185.7 | ASTM/ASME A/SA182 - 300LBS | Confirm | 141.3 |
| 269.9 | 12.0 | 22.23 | weld neck | 320.0 | 206.0 | Confirm | 154.1 | 97.0 | 19.68 | 35.0 | 6 | 215.9 | ASTM/ASME A/SA182 - 300LBS | Confirm | 168.3 |
| 330.2 | 12.0 | 25.4 | weld neck | 380.0 | 260.0 | Confirm | 202.7 | 110.0 | 30.48 | 39.7 | 8 | 269.9 | ASTM/ASME A/SA182 - 300LBS | Confirm | 219.1 |
| 387.4 | 16.0 | 28.58 | weld neck | 445.0 | 321.0 | Confirm | 254.6 | 116.0 | 43.74 | 46.1 | 10 | 323.8 | ASTM/ASME A/SA182 - 300LBS | Confirm | 273.0 |
| 450.8 | 16.0 | 31.75 | weld neck | 520.0 | 375.0 | Confirm | 304.8 | 129.0 | 64.41 | 49.3 | 12 | 381.0 | ASTM/ASME A/SA182 - 300LBS | Confirm | 323.8 |
| 514.4 | 20.0 | 31.75 | weld neck | 585.0 | 425.0 | specified by purchaser; drawing/schedule required | Confirm | 141.0 | 88.3 | 52.4 | 14 | 412.8 | ASTM/ASME A/SA182 - 300LBS | Confirm | 355.6 |
| 571.5 | 20.0 | 34.93 | weld neck | 650.0 | 483.0 | specified by purchaser; drawing/schedule required | Confirm | 144.0 | 112.94 | 55.6 | 16 | 469.9 | ASTM/ASME A/SA182 - 300LBS | Confirm | 406.4 |
| 628.6 | 24.0 | 34.93 | weld neck | 710.0 | 533.0 | specified by purchaser; drawing/schedule required | Confirm | 157.0 | 138.34 | 58.8 | 18 | 533.4 | ASTM/ASME A/SA182 - 300LBS | Confirm | 457.0 |
| 685.8 | 24.0 | 34.93 | weld neck | 775.0 | 587.0 | specified by purchaser; drawing/schedule required | Confirm | 160.0 | 167.37 | 62.0 | 20 | 584.2 | ASTM/ASME A/SA182 - 300LBS | Confirm | 508.0 |
| 812.8 | 24.0 | 41.28 | weld neck | 915.0 | 702.0 | specified by purchaser; drawing/schedule required | Confirm | 167.0 | 235.41 | 68.3 | 24 | 692.2 | ASTM/ASME A/SA182 - 300LBS | Confirm | 610.0 |
| 876.3 | 28.0 | 44.45 | weld neck | 970.0 | 721.0 | specified by purchaser; drawing/schedule required | Confirm | 183.0 | 283.4 | 77.8 | 26 | 749.0 | ASTM/ASME A/SA182 - 300LBS | A | 660.4 |
| 803.3 | 32.0 | 34.93 | weld neck | 865.0 | 702.0 | specified by purchaser; drawing/schedule required | Confirm | 168.0 | 185.0 | 87.4 | 26 | 737.0 | ASTM/ASME A/SA182 - 300LBS | B | 665.2 |
| 939.8 | 28.0 | 44.45 | weld neck | 1035.0 | 775.0 | specified by purchaser; drawing/schedule required | Confirm | 195.0 | 343.2 | 84.2 | 28 | 800.0 | ASTM/ASME A/SA182 - 300LBS | A | 711.2 |
| 857.2 | 36.0 | 34.93 | weld neck | 920.0 | 756.0 | specified by purchaser; drawing/schedule required | Confirm | 148.0 | 202.5 | 87.4 | 28 | 787.0 | ASTM/ASME A/SA182 - 300LBS | B | 716.0 |
| 997.0 | 28.0 | 47.63 | weld neck | 1090.0 | 827.0 | specified by purchaser; drawing/schedule required | Confirm | 208.0 | 395.3 | 90.5 | 30 | 857.0 | ASTM/ASME A/SA182 - 300LBS | A | 762.0 |
| 920.8 | 36.0 | 38.1 | weld neck | 990.0 | 813.0 | specified by purchaser; drawing/schedule required | Confirm | 156.0 | 246.2 | 92.1 | 30 | 845.0 | ASTM/ASME A/SA182 - 300LBS | B | 768.4 |
| 1054.1 | 28.0 | 50.8 | weld neck | 1150.0 | 881.0 | specified by purchaser; drawing/schedule required | Confirm | 221.0 | 455.0 | 96.9 | 32 | 914.0 | ASTM/ASME A/SA182 - 300LBS | A | 812.8 |
| 977.9 | 32.0 | 41.28 | weld neck | 1055.0 | 864.0 | specified by purchaser; drawing/schedule required | Confirm | 167.0 | 302.1 | 101.6 | 32 | 902.0 | ASTM/ASME A/SA182 - 300LBS | B | 819.2 |
| 1104.9 | 28.0 | 50.8 | weld neck | 1205.0 | 937.0 | specified by purchaser; drawing/schedule required | Confirm | 230.0 | 511.5 | 100.1 | 34 | 965.0 | ASTM/ASME A/SA182 - 300LBS | A | 863.6 |
| 1031.9 | 36.0 | 41.28 | weld neck | 1110.0 | 918.0 | specified by purchaser; drawing/schedule required | Confirm | 171.0 | 324.4 | 101.6 | 34 | 953.0 | ASTM/ASME A/SA182 - 300LBS | B | 870.0 |
| 1168.4 | 32.0 | 53.98 | weld neck | 1270.0 | 991.0 | specified by purchaser; drawing/schedule required | Confirm | 240.0 | 568.2 | 103.2 | 36 | 1022.0 | ASTM/ASME A/SA182 - 300LBS | A | 914.4 |
| 1089.0 | 32.0 | 44.45 | weld neck | 1170.0 | 965.0 | specified by purchaser; drawing/schedule required | Confirm | 179.0 | 363.9 | 101.6 | 36 | 1010.0 | ASTM/ASME A/SA182 - 300LBS | B | 920.8 |
| 1139.8 | 36.0 | 44.45 | weld neck | 1220.0 | 1016.0 | specified by purchaser; drawing/schedule required | Confirm | 165.0 | 407.4 | 109.6 | 38 | 1060.0 | ASTM/ASME A/SA182 - 300LBS | B | 971.6 |
| 1190.6 | 40.0 | 44.45 | weld neck | 1275.0 | 1067.0 | specified by purchaser; drawing/schedule required | Confirm | 197.0 | 440.3 | 114.3 | 40 | 1114.0 | ASTM/ASME A/SA182 - 300LBS | B | 1022.4 |
| 1244.6 | 36.0 | 47.63 | weld neck | 1335.0 | 1118.0 | specified by purchaser; drawing/schedule required | Confirm | 203.0 | 489.9 | 117.5 | 42 | 1168.0 | ASTM/ASME A/SA182 - 300LBS | B | 1074.7 |
| 1295.4 | 40.0 | 47.63 | weld neck | 1385.0 | 1173.0 | specified by purchaser; drawing/schedule required | Confirm | 213.0 | 541.1 | 125.5 | 44 | 1219.0 | ASTM/ASME A/SA182 - 300LBS | B | 1125.5 |
| 1365.2 | 36.0 | 50.8 | weld neck | 1460.0 | 1229.0 | specified by purchaser; drawing/schedule required | Confirm | 221.0 | 637.0 | 127.0 | 46 | 1270.0 | ASTM/ASME A/SA182 - 300LBS | B | 1176.3 |
| 1416.0 | 40.0 | 50.8 | weld neck | 1510.0 | 1278.0 | specified by purchaser; drawing/schedule required | Confirm | 222.0 | 656.8 | 127.0 | 48 | 1327.0 | ASTM/ASME A/SA182 - 300LBS | B | 1227.1 |
