Tubing, Flanges & Pipe Fittings

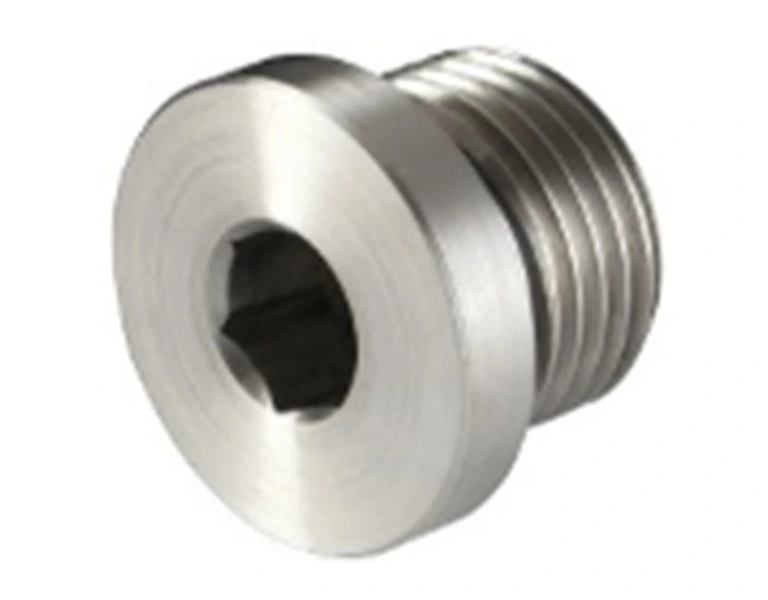

VSTI-ED - LOCKING COMPONENT - BSP PLUG.
Hydraulic tube connections and installation components selected to the specified interface.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Standard, nominal size and pressure class
02
Material grade and wall thickness
03
Facing, drilling and connection type
04
Drawing or dimensions of the mating connection
VSTI-ED - LOCKING COMPONENT - BSP PLUG.
Exact tube-fitting selections by tube outside diameter, series and the connection dimensions shown. Nominal connection or tube size is listed only where explicitly stated. Confirm exact thread form, seals, material, working pressure, temperature and outline dimensions. No generic pressure rating is assigned.
| Part code | Nominal plug thread | Seal form | Thread family |
|---|---|---|---|
| VSTI1/2ED | 1/2 | ED; compound unspecified | BSP; parallel/taper not specified |
| VSTI1/4ED | 1/4 | ED; compound unspecified | BSP; parallel/taper not specified |
| VSTI1/8ED | 1/8 | ED; compound unspecified | BSP; parallel/taper not specified |
| VSTI11/2ED | 1-1/2 | ED; compound unspecified | BSP; parallel/taper not specified |
| VSTI11/4ED | 1-1/4 | ED; compound unspecified | BSP; parallel/taper not specified |
| VSTI1ED | 1 | ED; compound unspecified | BSP; parallel/taper not specified |
| VSTI3/4ED | 3/4 | ED; compound unspecified | BSP; parallel/taper not specified |
| VSTI3/8ED | 3/8 | ED; compound unspecified | BSP; parallel/taper not specified |
