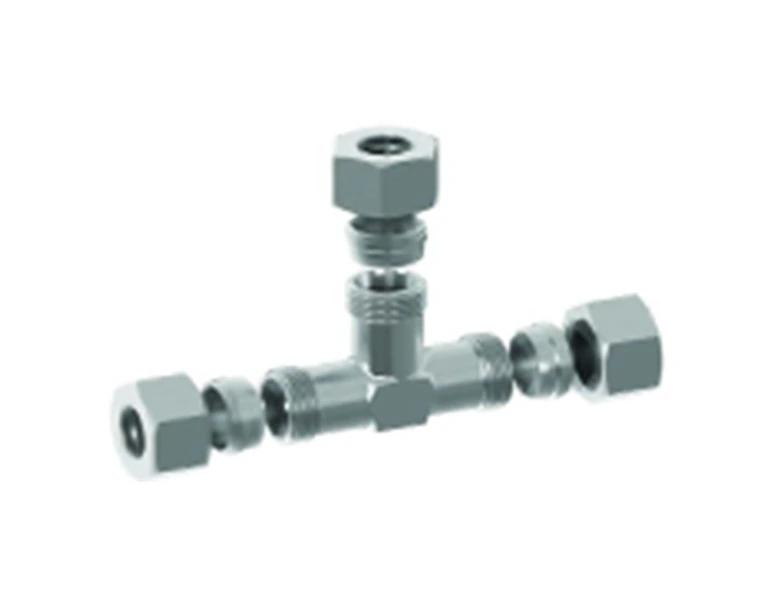

T - METRIC MALE TEE.
Hydraulic tube connections and installation components selected to the specified interface.
Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Standard, nominal size and pressure class
Material grade and wall thickness
Facing, drilling and connection type
Drawing or dimensions of the mating connection
DIN equal-tee exact codes.
Metric tube connection selections by tube outside diameter, series and stated thread. Use the exact tube diameter, L/S series and thread together. Missing pressures, masses or dimensions require confirmation; do not infer a rating from thread size alone. Body material, seals and full outline dimensions must match the application.
| Part code | Tube outside diameter (mm) | DIN series | Thread T1 (metric designation) | pressure column (bar) | Mass per100 pieces (kg/100) |
|---|---|---|---|---|---|
| T06L | 6 | L | 12×1.5 | 315 | 6.3 |
| T08L | 8 | L | 14×1.5 | 315 | 8.5 |
| T10L | 10 | L | 16×1.5 | 315 | 11.5 |
| T12L | 12 | L | 18×1.5 | 315 | 15.0 |
| T15L | 15 | L | 22×1.5 | 315 | 24.5 |
| T18L | 18 | L | 26×1.5 | 315 | 35.8 |
| T22L | 22 | L | 30×2 | 160 | 47.9 |
| T28L | 28 | L | 36×2 | 160 | 74.5 |
| T35L | 35 | L | 45×2 | 160 | 100 |
| T42L | 42 | L | 52×2 | 160 | 150 |
| T06S | 6 | S | 14×1.5 | 630 | 11 |
| T08S | 8 | S | 16×1.5 | 630 | 14.2 |
| T10S | 10 | S | 18×1.5 | 630 | 19.1 |
| T12S | 12 | S | 20×1.5 | 630 | 24.3 |
| T14S | 14 | S | 22×1.5 | 630 | 30.2 |
| T16S | 16 | S | 24×1.5 | 400 | 39.8 |
| T20S | 20 | S | 30×2 | 400 | 60 |
| T25S | 25 | S | 36×2 | 400 | 112 |
| T30S | 30 | S | 42×2 | 400 | 146 |
| T38S | 38 | S | 52×2 | 315 | 206 |
