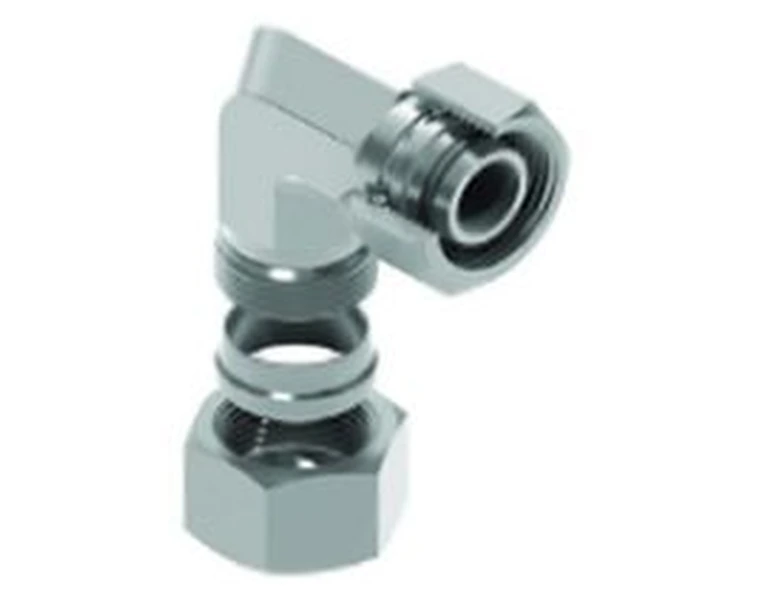

EVW - ADJUSTABLE ELBOW.
Exact tube-fitting selections by tube outside diameter, series and the connection dimensions shown. Use the exact tube outside diameter, series and stated threads together. Listed pressure is specific to the row; material, seal compound, temperature basis, assembly requirements and installation dimensions require confirmation. Missing values are not inferred from a DIN series or similar part number.
| Part code | Adjustable connection | Fitting angle (degrees) | Tube-end thread T1 (metric diameter × pitch (mm)) | Second fitting thread T2 (metric diameter × pitch (mm)) | DIN series label | Listed pressure (bar) | Tube outside diameter (mm) |
|---|---|---|---|---|---|---|---|
| EVW06L | Yes | 90 | 12×1.5 | 12×1.5 | L | 315.0 | 6 |
| EVW06S | Yes | 90 | 14×1.5 | 14×1.5 | S | 630.0 | 6 |
| EVW08L | Yes | 90 | 14×1.5 | 14×1.5 | L | 315.0 | 8 |
| EVW08S | Yes | 90 | 16×1.5 | 16×1.5 | S | 630.0 | 8 |
| EVW10L | Yes | 90 | 16×1.5 | 16×1.5 | L | 315.0 | 10 |
| EVW10S | Yes | 90 | 18×1.5 | 18×1.5 | S | 630.0 | 10 |
| EVW12L | Yes | 90 | 18×1.5 | 18×1.5 | L | 315.0 | 12 |
| EVW12S | Yes | 90 | 20×1.5 | 20×1.5 | S | 630.0 | 12 |
| EVW14S | Yes | 90 | 22×1.5 | 22×1.5 | S | 630.0 | 14 |
| EVW15L | Yes | 90 | 22×1.5 | 22×1.5 | L | 315.0 | 15 |
| EVW16S | Yes | 90 | 24×1.5 | 24×1.5 | S | 400.0 | 16 |
| EVW18L | Yes | 90 | 26×1.5 | 26×1.5 | L | 160.0 | 18 |
| EVW20S | Yes | 90 | 30×2 | 30×2 | S | 400.0 | 20 |
| EVW22L | Yes | 90 | 30×2 | 30×2 | L | 160.0 | 22 |
| EVW25S | Yes | 90 | 36×2 | 36×2 | S | 400.0 | 25 |
| EVW28L | Yes | 90 | 36×2 | 36×2 | L | 160.0 | 28 |
| EVW30S | Yes | 90 | 42×2 | 42×2 | S | 400.0 | 30 |
| EVW35L | Yes | 90 | 45×2 | 45×2 | L | 160.0 | 35 |
| EVW38S | Yes | 90 | 52×2 | 52×2 | S | 315.0 | 38 |
| EVW42L | Yes | 90 | 52×2 | 52×2 | L | 160.0 | 42 |
