AFRICAN HOSE SOLUTIONSREPRESENTATIVE CONFIGURATION
Tubing, Flanges & Pipe Fittings
Double.
Hydraulic tube connections and installation components selected to the specified interface.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Standard, nominal size and pressure class
02
Material grade and wall thickness
03
Facing, drilling and connection type
04
Drawing or dimensions of the mating connection

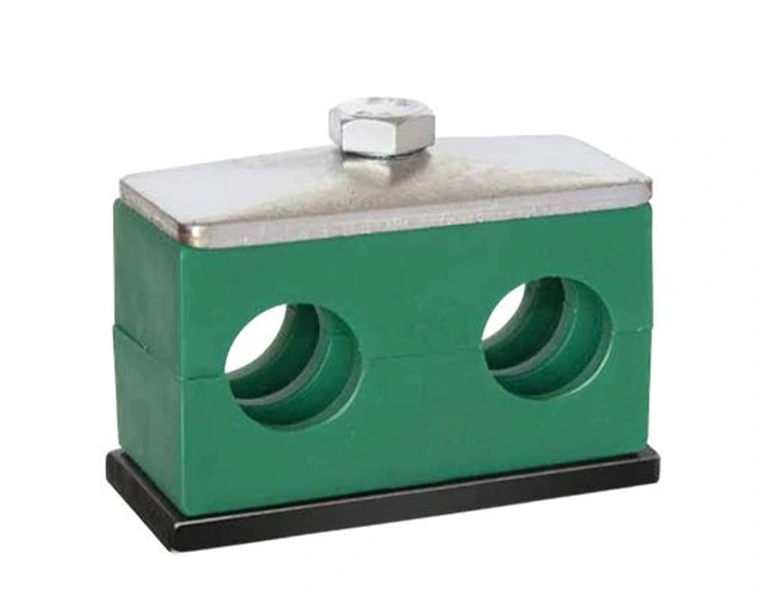

Single and twin tube-clamp bores.
Single and twin polypropylene tube-clamp blocks selected by tube outside diameter. Confirm the mounting hardware, plate material, bolt spacing, overall dimensions and temperature requirement. Bore size does not establish mounting load or vibration capacity.
| Part code | Tube outside diameter (mm) | Tube positions | Block material |
|---|---|---|---|
| CD12 | 12 | 2 | polypropylene |
| CD15 | 15 | 2 | polypropylene |
| CD16 | 16 | 2 | polypropylene |
| CD18 | 18 | 2 | polypropylene |
| CD20 | 20 | 2 | polypropylene |
| CD22 | 22 | 2 | polypropylene |
| CD25 | 25 | 2 | polypropylene |
| CD28 | 28 | 2 | polypropylene |
