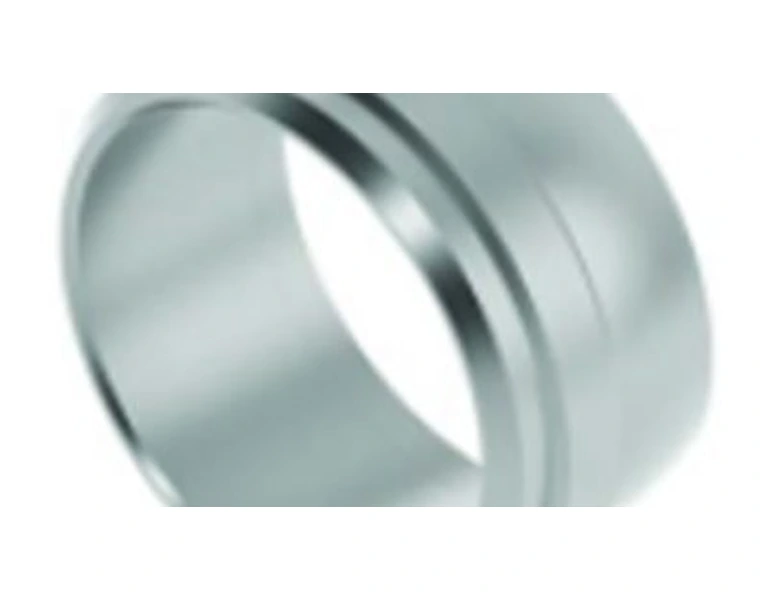

D - Cutting Ring.
Hydraulic tube connections and installation components selected to the specified interface.
Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Standard, nominal size and pressure class
Material grade and wall thickness
Facing, drilling and connection type
Drawing or dimensions of the mating connection
D - Cutting Ring.
Exact tube-fitting selections by tube outside diameter, series and the connection dimensions shown. Use the exact tube outside diameter, series and stated threads together. Listed pressure is specific to the row; material, seal compound, temperature basis, assembly requirements and installation dimensions require confirmation. Missing values are not inferred from a DIN series or similar part number.
| Part code | Mass per100 pieces (kg/100 pieces) | DIN series label | Listed pressure (bar) | Tube outside diameter (mm) |
|---|---|---|---|---|
| D04LL | Confirm | LL | Confirm | 4 |
| D06L/S | Confirm | L/S | Confirm | 6 |
| D08L/S | Confirm | L/S | Confirm | 8 |
| D10L/S | Confirm | L/S | Confirm | 10 |
| D12L/S | Confirm | L/S | Confirm | 12 |
| D14S | 0.36 | S | 630.0 | 14 |
| D15L | 0.41 | L | 315.0 | 15 |
| D16S | 0.41 | S | 400.0 | 16 |
| D18L | 0.46 | L | 315.0 | 18 |
| D20S | 0.85 | S | 400.0 | 20 |
| D22L | 0.6 | L | 160.0 | 22 |
| D25S | 1.06 | S | 400.0 | 25 |
| D28L | 0.75 | L | 160.0 | 28 |
| D30S | 1.6 | S | 400.0 | 30 |
| D35L | 1.6 | L | 160.0 | 35 |
| D38S | 2.0 | S | 315.0 | 38 |
| D42L | 2.1 | L | 160.0 | 42 |
