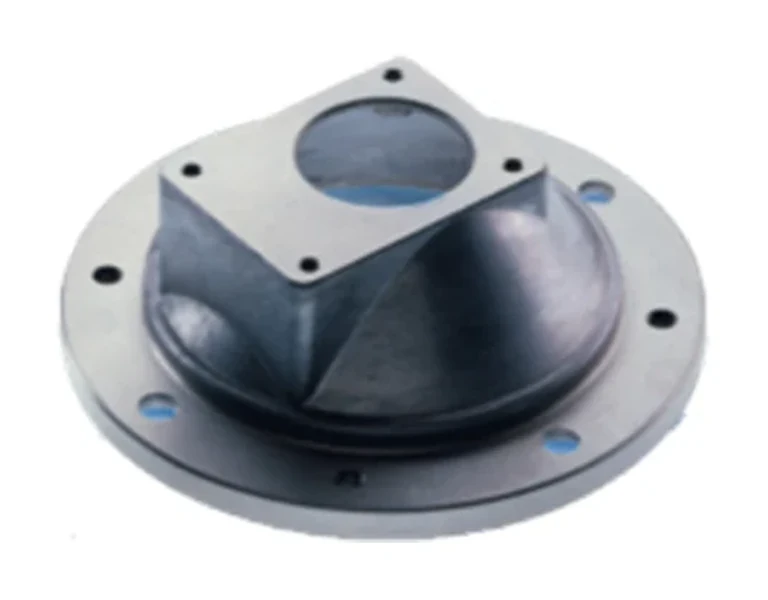

AFRICAN HOSE SOLUTIONSREPRESENTATIVE CONFIGURATION
Pumps, Motors & Power Packs
BH - BELL HOUSINGS.
Hydraulic drive components selected to the required flow, pressure and mounting arrangement.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Required flow or displacement
02
Operating pressure and duty cycle
03
Speed, shaft and mounting arrangement
04
Rotation, fluid and control requirements
BH BELL HOUSINGS exact configuration.
Bell-housing choices by pump group, listed housing size and motor-power range. Power ranges are selection references for the indicated configuration. Confirm the motor flange, pump flange, shaft alignment, housing dimensions and drive arrangement; the listed size alone is not a mounting drawing.
| Part code | Configuration | motor power maximum (kW) | motor power minimum (kW) | pump group | labelled size; drawing reference unspecified (mm) |
|---|---|---|---|---|---|
| BH1-140 | Confirm | 0.18 | 0.12 | 1 | 140 |
| BH1-160 | Confirm | 0.37 | 0.25 | 1 | 160 |
| BH1-200 | Confirm | 1.5 | 0.55 | 1 | 200 |
| BH1-250 | Confirm | 4.0 | 2.2 | 1 | 250 |
| BH2-160 | Confirm | 0.37 | 0.25 | 2 | 160 |
| BH2-200 | Confirm | 1.5 | 0.55 | 2 | 200 |
| BH2-250 | Confirm | 4.0 | 2.2 | 2 | 250 |
| BH2-300 | Confirm | 9.0 | 5.5 | 2 | 300 |
| BH2-350 | Confirm | 22.0 | 11.0 | 2 | 350 |
| BH3-250 | Confirm | 4.0 | 2.2 | 3 | 250 |
| BH3-300 | Confirm | 9.0 | 5.5 | 3 | 300 |
| BH3-350 | Confirm | 22.0 | 11.0 | 3 | 350 |
| BHPB-200 | pilot-bore housing | 1.5 | 0.55 | Confirm | 200 |
| BHPB-250 | pilot-bore housing | 4.0 | 2.2 | Confirm | 250 |
| BHPB-300 | pilot-bore housing | 9.0 | 5.5 | Confirm | 300 |
| BHPB-350 | pilot-bore housing | 22.0 | 11.0 | Confirm | 350 |
| BHPB-400 | pilot-bore housing | 30.0 | 30.0 | Confirm | 400 |
