Sandblast Hose.
Abrasive blasting applications with application-matched couplings.
Share your dimensions, drawing or part details with your enquiry.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Medium and concentration
Inside diameter and length
Pressure or vacuum and temperature
End connections and electrical requirements

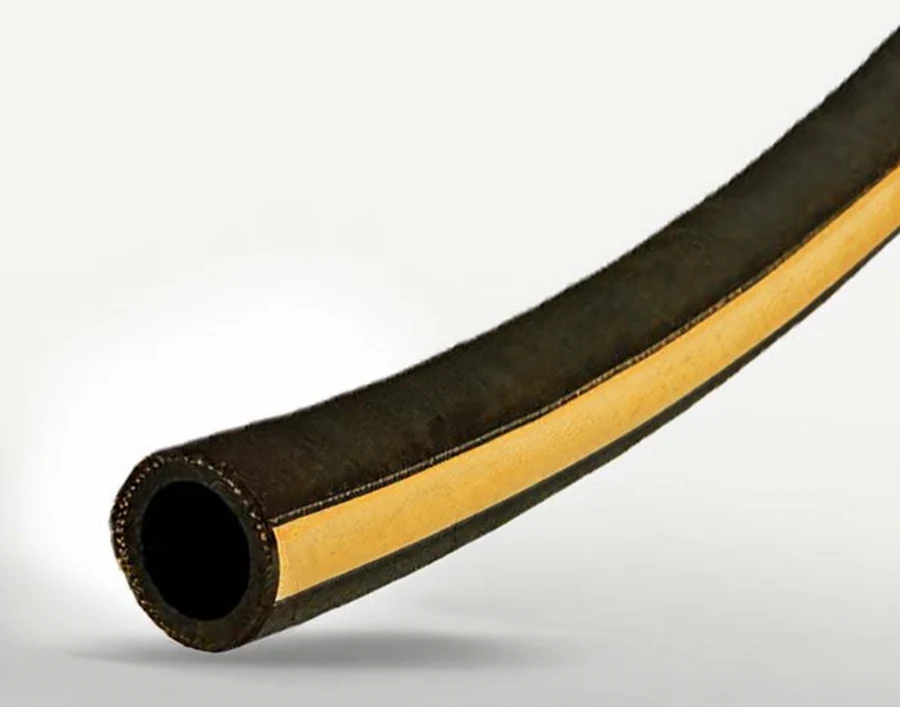

Sand and shotblast rubber hose — configurations.
Rubber sand/shotblast hose configurations. The 32 mm and 38 mm configurations have 12 bar working pressure and 36 bar burst pressure. Select abrasive service and electrical continuity requirements for the assembly.
| Inside diameter (mm) | Outside diameter (mm) | Working pressure (bar) | Burst pressure (bar) | Minimum bend radius (mm) | Mass (kg/m) | Standard roll length (m) |
|---|---|---|---|---|---|---|
| 32.0 | 50.0 | 12.0 | 36.0 | 320.0 | 1.51 | 30 |
| 38.0 | 60.0 | 12.0 | 36.0 | 400.0 | 1.53 | 30 |
Sand and shotblast rubber hose — configurations — construction & conditions.
Rubber sand/shotblast hose configurations. The 32 mm and 38 mm configurations have 12 bar working pressure and 36 bar burst pressure. Select abrasive service and electrical continuity requirements for the assembly.
| Parameter | Specification |
|---|---|
| Tube | Black SBR/NR rubber |
| Reinforcement | High-tensile synthetic textile |
| Cover | SBR/NR rubber |
| Temperature range c | -20 / 80 |
| Application | Sand/shotblast pressure conveyance of abrasive particles |
| Configuration | Sand/shotblast rubber hose |
| Temperature min c | -20 |
| Temperature max c | 80 |
Sand and shotblast rubber hose — configurations.
Rubber sand/shotblast hose configurations. The 32 mm and 38 mm configurations have 12 bar working pressure and 36 bar burst pressure. Select abrasive service and electrical continuity requirements for the assembly.
| Parameter | Specification |
|---|---|
| Tube | Black SBR/NR rubber |
| Reinforcement | High-tensile synthetic textile |
| Cover | SBR/NR rubber |
| Temperature range c | -20 / 80 |
| Application | Sand/shotblast pressure conveyance of abrasive particles |
