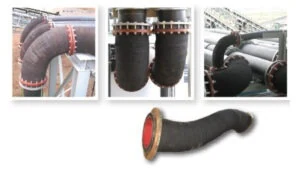

Hand-Built Reducers & Bends.
Configured transitions and bends for material-handling systems.
Share your dimensions, drawing or part details with your enquiry.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Medium and concentration
Inside diameter and length
Pressure or vacuum and temperature
End connections and electrical requirements
custom hand-built rubber hose manufacturing envelope.
custom hand-built rubber hose manufacturing envelope Custom dimensions and operating limits are set by the approved design. A manufacturing range is not a rating for every hose in that range.
| configuration | Minimum bore (mm) | Maximum bore (mm) | Minimum slurry liner (mm) | Maximum slurry liner (mm) |
|---|---|---|---|---|
| BSS custom hand-built rubber hose manufacturing envelope | 25 | 1000 | 6 | 24 |
custom hand-built rubber hose manufacturing envelope — construction & conditions.
custom hand-built rubber hose manufacturing envelope Custom dimensions and operating limits are set by the approved design. A manufacturing range is not a rating for every hose in that range.
| Parameter | Specification |
|---|---|
| Service | Custom abrasive-media hose; project-specified design |
| Numeric limits | Working pressure,vacuum,temperature,bend radius and mass depend on ordered construction |
| Wall options | Hard-wall suction /soft-wall delivery |
| Geometry options | Straight hose and conical reducers |
Reducers bends.
Custom engineered construction for the selected application. Custom dimensions and operating limits are set by the approved design. A manufacturing range is not a rating for every hose in that range. Define bore,length,medium,temperature,working pressure,vacuum,liner and end connections in the quotation.
| Parameter | Specification |
|---|---|
| Manufacturing mode | Project-engineered hand-built slurry/elephant hose |
| Verified applications | Mining slurry/abrasives / Agricultural water / Concrete placement |
| End options | Built-in flanges / Open ends with clamp-on fittings |
| Design definition | Diameter / Length / Pressure/vacuum / Flange type/drilling / Liner material/thickness |
| Numeric limits | Defined by approved project specification; no public universal diameter/pressure envelope stated |
custom hand-built rubber hose manufacturing envelope.
custom hand-built rubber hose manufacturing envelope Custom dimensions and operating limits are set by the approved design. A manufacturing range is not a rating for every hose in that range.
| Parameter | Specification |
|---|---|
| Configurations | custom hand-built rubber hose manufacturing envelope — Only the named construction; other codes or constructions require their own specification. |
