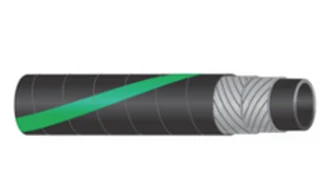

Cement & Bulk Handling Hose.
Dry bulk and cement handling applications.
Share your dimensions, drawing or part details with your enquiry.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Medium and concentration
Inside diameter and length
Pressure or vacuum and temperature
End connections and electrical requirements
EPDM hot-air blower hose, 10 bar series.
Heat-resistant hot-air blower hose. This is a hot-air construction for dry-bulk unloading. Its rating does not establish hot-water duty or a direct cement-conveying rating.
| configuration | Inside diameter (mm) | Outside diameter (mm) | Working pressure (bar) | Burst pressure (bar) | Mass (kg/m) | Roll length (m) |
|---|---|---|---|---|---|---|
| EPDM hot-air blower hose,10bar series | 63 | 78.7 | 10 | 30 | 1.63 | 30 |
EPDM hot-air blower hose, 10 bar series — construction & conditions.
Heat-resistant hot-air blower hose. This is a hot-air construction for dry-bulk unloading. Its rating does not establish hot-water duty or a direct cement-conveying rating.
| Parameter | Specification |
|---|---|
| Tube | Heat-resistant EPDM |
| Reinforcement | Synthetic fabric |
| Cover | Heat/abrasion-resistant synthetic rubber |
| Temperature range c | -20 / 180 |
| Safety factor | 3 |
| Service | Hot air for dry-bulk unloading;not a hot-water or direct cement-conveying rating |
Abrasion-resistant cement delivery hose, table configuration.
Abrasion-resistant cement-delivery hose configuration. Confirm pressure, aggregate compatibility and pulsation duty for the selected assembly. The dimensions shown do not establish an approved working-pressure duty.
| configuration | Inside diameter (mm) | Outside diameter (mm) | Mass (kg/m) | Roll length (m) |
|---|---|---|---|---|
| Abrasion-resistant cement delivery hose,table configuration | 100 | 122 | 3.759 | 30 |
Abrasion-resistant cement delivery hose, table configuration — construction & conditions.
Abrasion-resistant cement-delivery hose configuration. Confirm pressure, aggregate compatibility and pulsation duty for the selected assembly. The dimensions shown do not establish an approved working-pressure duty.
| Parameter | Specification |
|---|---|
| Tube | Abrasion-resistant synthetic rubber |
| Reinforcement | Synthetic fabric |
| Cover | Abrasion/weather-resistant synthetic rubber |
| Temperature range c | -20 / 80 |
| Safety factor | 3 |
EPDM hot-air blower hose, 10 bar series.
Heat-resistant hot-air blower hose. This is a hot-air construction for dry-bulk unloading. Its rating does not establish hot-water duty or a direct cement-conveying rating. Confirm pressure, aggregate compatibility and pulsation duty for the selected assembly. The dimensions shown do not establish an approved working-pressure duty.
| Parameter | Specification |
|---|---|
| Configurations | EPDM hot-air blower hose, 10 bar series / Abrasion-resistant cement delivery hose, table configuration — Only the named construction; other codes or constructions require their own specification. |
