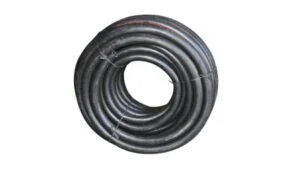

Abrasive Material Handling Hose.
Transfer of abrasive dry bulk material.
Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Medium and concentration
Inside diameter and length
Pressure or vacuum and temperature
End connections and electrical requirements
Wet-abrasion slurry hose — 80036 liner series.
Wet-abrasion slurry hose — 80036 liner series Dimensions and ratings apply to the named construction or exact code shown. Select pressure, temperature, medium and end fittings together for the finished assembly.
| Part code | Nominal bore mm | Size inch | Id mm | Od mm | Liner thickness mm | Min bend radius mm | Mass kg m (kg/m) | Configuration |
|---|---|---|---|---|---|---|---|---|
| 80036 100 | 100 | 4 | 101.6 | 137 | 6 | 914 | 8.1 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 125 | 125 | 5 | 127 | 162 | 6 | 1143 | 9.9 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 150 | 150 | 6 | 152.4 | 189 | 6 | 1372 | 12.1 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 178 | 178 | 7 | 178 | 215 | 6 | 1602 | 13.9 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 200 | 200 | 8 | 203.2 | 240 | 6 | 1829 | 15.7 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 250 | 250 | 10 | 254 | 287 | 6 | 2286 | 18 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 300 | 300 | 12 | 304.8 | 337 | 6 | 2743 | 21.4 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 350 | 350 | 14 | 355.6 | 396 | 6 | 3200 | 29.8 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 400 | 400 | 16 | 406.4 | 453 | 6 | 3658 | 41.3 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 450 | 450 | 18 | 457.2 | 505 | 6 | 4115 | 45.5 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 500 | 500 | 20 | 508 | 556 | 6 | 4572 | 53.3 | Wet-abrasion slurry hose — 80036 liner series |
| 80036 600 | 600 | 24 | 609.6 | 654 | 6 | 5486 | 75.6 | Wet-abrasion slurry hose — 80036 liner series |
Wet-abrasion slurry hose — 80036 liner series.
Wet-abrasion slurry hose — 80036 liner series Dimensions and ratings apply to the named construction or exact code shown. Select pressure, temperature, medium and end fittings together for the finished assembly.
| Parameter | Specification |
|---|---|
| Application | Configuration-specific abrasive slurry / material transfer |
| Tube options | Pre-cured36ShoreA wet-abrasion rubber;6or10mm options |
| Reinforcement | Polyester cord plus high-tensile wire helix |
| Cover | NR/SBR abrasion- and UV-resistant rubber |
| Temperature range c | -20 / 80 |
| Custom bore envelope mm | 100 / 1200 |
| Max build length m | 20 |
| Flange drilling options | ASME B16.5 / BS4504 / SANS1123 / AS2129 / EN1092 |
| End options | Plain / Cuffed / Fixed/floating flange / D-ring / Grooved / custom as appropriate |
| Manufacturing mode | Built to specification; ranges are design envelopes, not every-row ratings |
| Custom build pressure envelope kpa | -90 / 6000 |
Abrasive material.
Custom engineered construction for the selected application. Custom dimensions and operating limits are set by the approved design. A manufacturing range is not a rating for every hose in that range. Define bore,length,medium,temperature,working pressure,vacuum,liner and end connections in the quotation.
| Parameter | Specification |
|---|---|
| Manufacturing mode | Project-engineered hand-built slurry/elephant hose |
| Verified applications | Mining slurry/abrasives / Agricultural water / Concrete placement |
| End options | Built-in flanges / Open ends with clamp-on fittings |
| Design definition | Diameter / Length / Pressure/vacuum / Flange type/drilling / Liner material/thickness |
| Numeric limits | Defined by approved project specification; no public universal diameter/pressure envelope stated |
custom hand-built rubber hose manufacturing envelope.
custom hand-built rubber hose manufacturing envelope Custom dimensions and operating limits are set by the approved design. A manufacturing range is not a rating for every hose in that range.
| Parameter | Specification |
|---|---|
| Configurations | custom hand-built rubber hose manufacturing envelope — Only the named construction; other codes or constructions require their own specification. |
