Hydraulic Hose & Protection

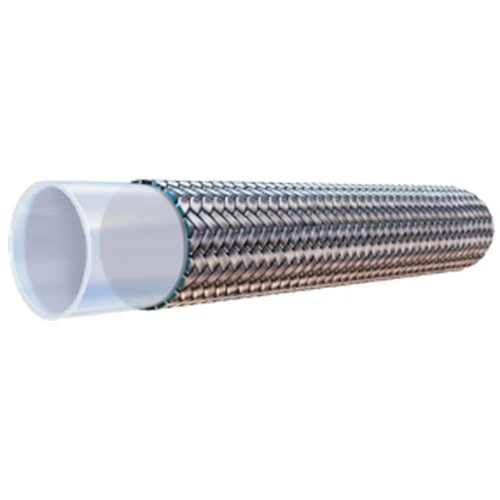

R14 - PTFE Hose.
Hose construction and size selected to match the fluid, operating duty and installation.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Inside diameter and overall length
02
Working pressure and pressure peaks
03
Fluid and operating temperature
04
End connections, orientation and routing
Construction & service conditions.
- Inner tube
- sintered PTFE
- Reinforcement
- single stainless steel wire braid
- Operating temperature
- -60 to +260 °C
- Construction standard
- SAE 100 R14
- Nominal safety factor
- 4:1
Hose dimensions & operating limits.
Ratings apply to the exact part code and specified construction. Fluid compatibility, temperature derating and the complete assembly must suit the operating duty. Values marked Confirm require configuration verification.
| Part code | Bore (in) | ID (mm) | OD (mm) | Working pressure (bar) | Burst pressure (bar) | Min. bend radius (mm) | Mass (kg/m) |
|---|---|---|---|---|---|---|---|
| TEF-02 | 1/8 | 3 | 6.2 | 225 | 900 | 40 | Confirm |
| TEF-03 | 3/16 | 4.8 | 7.6 | 190 | 760 | 50 | 0.08 |
| TEF-04 | 1/4 | 6 | 8.8 | 180 | 720 | 75 | 0.1 |
| TEF-06 | 3/8 | 9.5 | 12.1 | 165 | 660 | 125 | 0.16 |
| TEF-08 | 1/2 | 12.5 | 16.2 | 120 | 480 | 165 | 0.22 |
| TEF-10 | 5/8 | 16 | 18.8 | 88 | 352 | 200 | 0.28 |
| TEF-12 | 3/4 | 19 | 23.1 | 70 | 280 | 230 | 0.33 |
| TEF-16 | 1 | Confirm | 26.2 | 60 | 240 | 230 | 0.45 |
