Hydraulic Hose & Protection

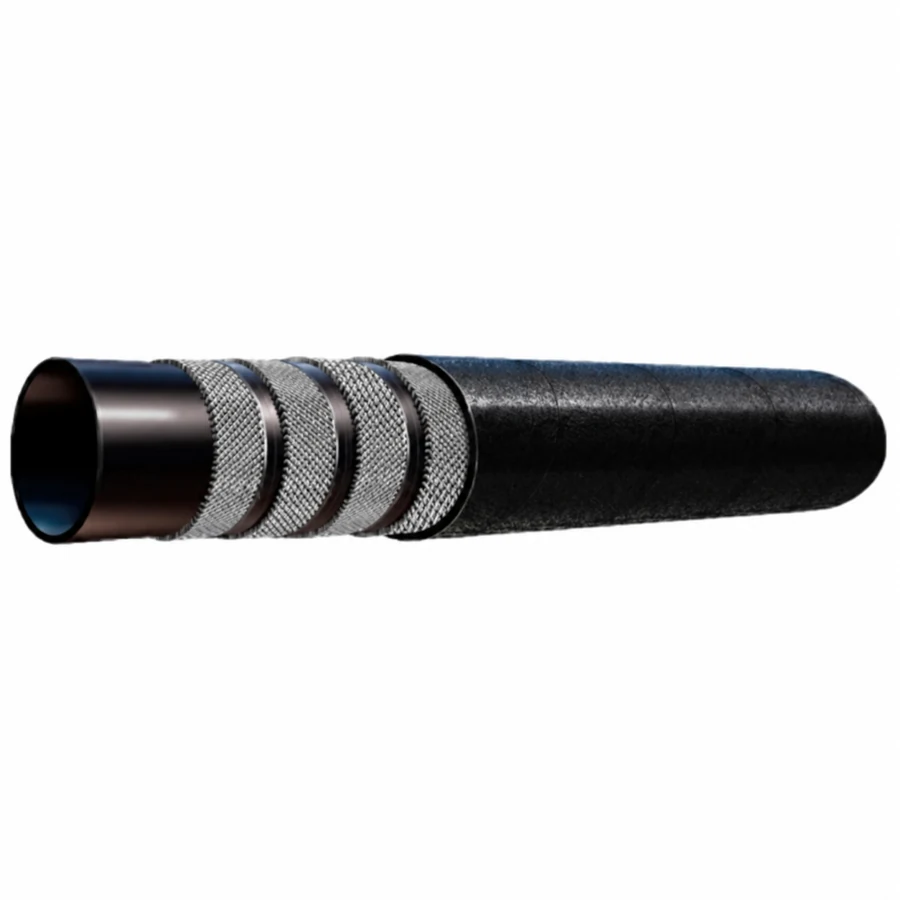

HB5000+ - Four-Spiral Performance Hydraulic Hose.
HB5000+ - Four-Spiral Performance Hydraulic Hose configurations for the specified hydraulic duty.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Inside diameter and overall length
02
Working pressure and pressure peaks
03
Fluid and operating temperature
04
End connections, orientation and routing
Construction & service conditions.
- Inner tube
- Oil- and water-resistant synthetic rubber
- Reinforcement
- Four layers of high-tensile steel wire
- Outer cover
- Hybrid abrasion-resistant synthetic rubber; ozone/weather resistance stated
- Operating temperature
- -40 to +120 °C
- Construction standard
- Exceeds DIN EN856 / Exceeds ISO18752 / ISO1307 referenced; exact class not stated
- Nominal safety factor
- 4:1
Hose dimensions & operating limits.
Ratings apply to the exact part code and specified construction. Fluid compatibility, temperature derating and the complete assembly must suit the operating duty. Values marked Confirm require configuration verification.
| Part code | Bore (in) | OD (mm) | Working pressure (bar) | Burst pressure (bar) | Min. bend radius (mm) | Mass (kg/m) |
|---|---|---|---|---|---|---|
| HB5000-06 | 3/8 | 19.8 | 380 | 1520 | 65 | 0.63 |
| HB5000-08 | 1/2 | 22.5 | 350 | 1400 | 80 | 0.77 |
| HB5000-10 | 5/8 | 26.1 | 350 | 1400 | 100 | 0.95 |
| HB5000-12 | 3/4 | 29.2 | 350 | 1400 | 120 | 1.09 |
| HB5000-16 | 1 | 36.5 | 350 | 1400 | 150 | 1.81 |
| HB5000-20 | 1-1/4 | 45 | 350 | 1400 | 210 | 2.56 |
| HB5000-24 | 1-1/2 | 51.9 | 300 | 1200 | 250 | 3.03 |
| HB5000-32 | 2 | 66.4 | 250 | 1000 | 315 | 4.24 |
