Hydraulic Hose & Protection
2SNK - Compact Two-Wire Performance Hydraulic Hose.
2SNK - Compact Two-Wire Performance Hydraulic Hose configurations for the specified hydraulic duty.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Inside diameter and overall length
02
Working pressure and pressure peaks
03
Fluid and operating temperature
04
End connections, orientation and routing

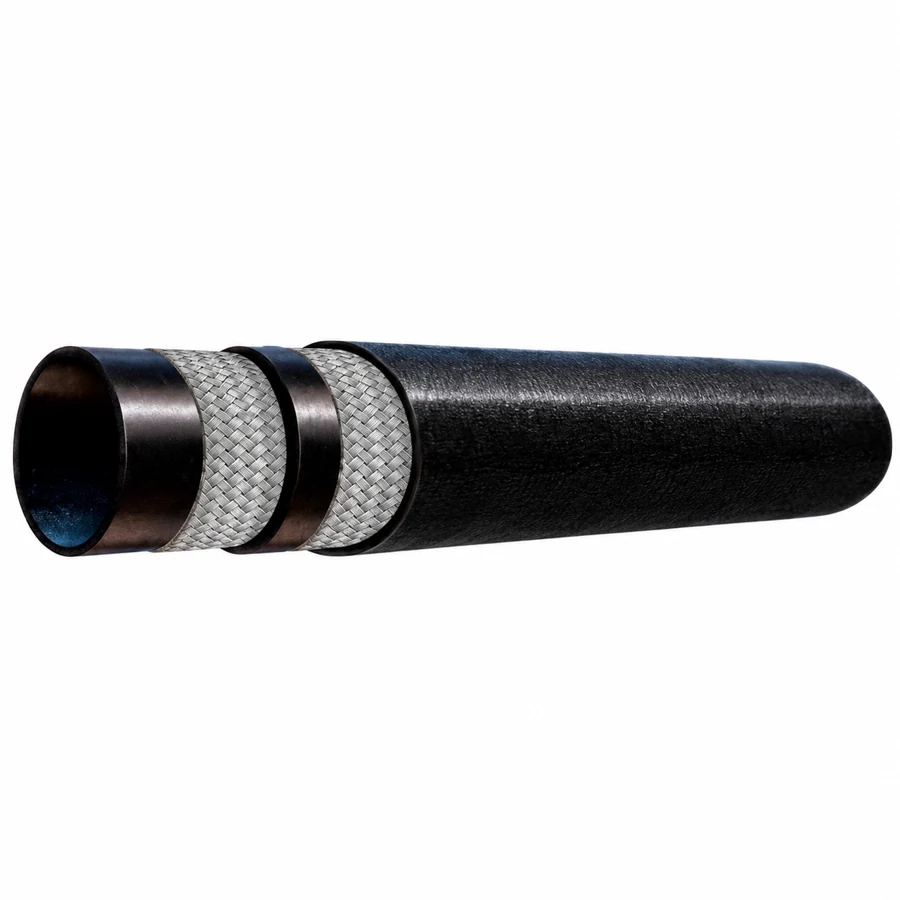

Construction & service conditions.
- Inner tube
- Synthetic rubber specified for HL/HLP/HLPD/HVLP/HFA/HFAS/HFB/HFC hydraulic fluids
- Reinforcement
- Two high-tensile steel-wire braids
- Outer cover
- Synthetic rubber resistant to abrasion and ozone
- Operating temperature
- -40 to +120 °C
- Construction standard
- Exceeds ISO18752 / Exceeds DIN EN8572SC / Exceeds SAE100R2 / Exceeds DIN EN8532SN / Exceeds ISO14362SN
- Nominal safety factor
- 4:1
Hose dimensions & operating limits.
Ratings apply to the exact part code and specified construction. Fluid compatibility, temperature derating and the complete assembly must suit the operating duty. Values marked Confirm require configuration verification.
| Part code | Bore (in) | ID (mm) | OD (mm) | Working pressure (bar) | Burst pressure (bar) | Min. bend radius (mm) |
|---|---|---|---|---|---|---|
| 2KP-04 | 1/4 | 6.6 | 13.2 | 450 | 1800 | 45 |
| 2KP-05 | 5/16 | 8.3 | 15.1 | 420 | 1680 | 55 |
| 2KP-06 | 3/8 | 9.9 | 17 | 385 | 1540 | 65 |
| 2KP-08 | 1/2 | 13 | 20.5 | 345 | 1400 | 90 |
| 2KP-10 | 5/8 | 16.4 | 24.2 | 290 | 1160 | 100 |
| 2KP-12 | 3/4 | 19.5 | 28.2 | 280 | 1120 | 140 |
| 2KP-16 | 1 | 26 | 35.6 | 210 | 840 | 150 |
| 2KP-20 | 1-1/4 | 32.5 | 43.5 | 175 | 700 | 300 |
