QCPF - PLASTIC PLUGS FOR QUICK RELEASE COUPLERS.

Connection components selected by thread, sealing form, dimensions and operating duty.

Select your product referenceDownload product datasheet No public pricing. Configuration and availability confirmed by quotation.

Need help matching this part?
Speak to our technical team

SPECIFY WITH CONFIDENCE

Get the right configuration.

Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.

Thread standard, size and sealing form

Hose construction or mating connection

Material and pressure rating

Straight, elbow, tee or special configuration

CONFIGURATION DATA

Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.

Part code	Coupling family	DNP size	ISO interface size	Dimension D as labelled (mm)	Dimension D1 as labelled (mm)	Weight
QCPF-02	Ball Type	06	6.3	22.0	19.5	15.0
QCPF-03	Ball Type	10	10.0	26.0	24.5	18.0
QCPF-04	Ball Type	13	12.5	29.0	26.0	21.0
QCPF-05	Ball Type	20	19.0	37.0	33.0	43.0
QCPF-06	Ball Type	25	25.0	41.0	39.0	56.0
QCPF-02	Pin Type	06	6.3	17.5	17.5	8.0
QCPF-03	Pin Type	10	10.0	23.5	22.0	16.0
QCPF-04	Pin Type	13	12.5	29.0	26.0	21.0
QCPF-05	Pin Type	20	19.0	36.5	36.0	39.0
QCPF-06	Pin Type	25	25.0	42.0	42.0	47.0
QCPF-02	Flat Face	06	6.3	26.0	20.0	13.0
QCPF-03	Flat Face	13	10.0	27.5	26.0	15.0
QCPF-04	Flat Face	20	12.5	35.0	31.5	26.0
QCPF-05	Flat Face	25	19.0	43.0	35.0	41.0

CONFIGURATION DATA

Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.

Parameter	Specification
Material	Injection-moulded PVC

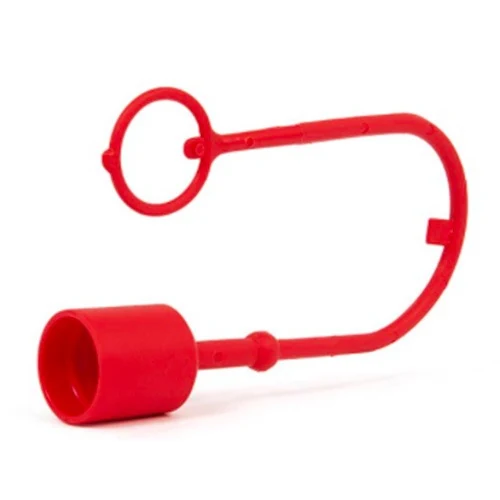

Configuration	male dust cap with retaining chain
