Representative dw_m - self centering bonded seal - metric configuration
AFRICAN HOSE SOLUTIONSREPRESENTATIVE CONFIGURATION
Hose Fittings & Adaptors

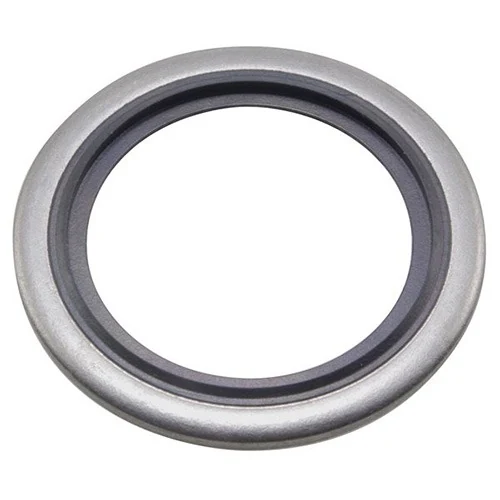

DW_M - Self Centering Bonded Seal - Metric.

Connection components selected by thread, sealing form, dimensions and operating duty.

Download product datasheet No public pricing. Configuration and availability confirmed by quotation.

Need help matching this part?
Speak to our technical team

SPECIFY WITH CONFIDENCE

Get the right configuration.

Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.

01

Thread standard, size and sealing form

02

Hose construction or mating connection

03

Material and pressure rating

04

Straight, elbow, tee or special configuration

CONFIGURATION DATA

DW_M bonded seals — German metric reference configurations.

Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.

Part codeReference ()Self-centering reference ()Alternative reference ()Dimension A (as labelled) (mm)Dimension B (as labelled) (mm)Dimension C (as labelled) (mm)Dimension D (as labelled) (mm)Dimension E (as labelled) (mm)Dimension F (as labelled) (mm)
DW-06M206606PPM610.08.06.70.31.04.7
DW-06M207607PPM611.08.26.70.31.04.7
DW-08M212612PPM813.010.08.70.31.06.4
DW-08M213613PPM814.010.48.70.31.06.4
DW-10M216616PPM1015.8812.010.350.42.08.56
DW-10M217617PPM1016.012.410.70.41.58.05
DW-10M218618PPM1018.012.410.70.41.58.05
DW-12M222622PPM1218.014.312.70.41.59.73
DW-12M223623PPM1220.014.412.70.41.59.73
DW-14M227627PPM1422.016.414.70.41.511.38
DW-16M229629PPM1624.018.416.70.41.513.41
DW-18M232632PPM1826.020.418.70.41.514.76
DW-20M233633PPM2028.022.520.70.41.516.76
DW-22M236636PPM2230.024.422.70.42.018.74
DW-22M237ConfirmPPM2230.024.422.70.43.0Confirm
DW-24M238638PPM2432.026.424.70.42.020.11
DW-26M239639PPM2635.028.426.70.42.022.3
DW-30M242642PPM3039.033.031.00.42.025.7
DW-36M245645PPM3646.038.836.70.42.031.1
CONFIGURATION DATA

DW_M bonded seals — PM1000 metric reference configurations.

Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.

Part codeReference ()Self-centering reference ()Metric size ()Dimension A (as labelled) (mm)Dimension B (as labelled) (mm)Dimension C (as labelled) (mm)Dimension D (as labelled) (mm)Dimension E (as labelled) (mm)Dimension F (as labelled) (mm)Dimension H (as labelled) (mm)
DW-06M30994099M610.08.07.46.01.00.44.7
DW-08M31384138M814.011.010.08.01.00.46.4
DW-10M30764076M1017.013.012.010.01.50.58.56
DW-12M30774077M1219.016.015.012.01.50.59.73
DW-14M30634063M1422.018.017.014.01.50.511.38
DW-16M30784078M1624.020.019.016.01.50.513.41
DW-18M30644064M1827.022.021.018.02.00.514.76
DW-20M30794079M2030.025.024.020.02.00.516.76
DW-22M30984098M2232.027.026.022.02.00.518.74
DW-24M30804080M2436.029.028.024.02.00.520.11
DW-26M30654065M2635.030.530.026.02.00.522.3
CONFIGURATION DATA

Construction & application.

Operating limits apply to the selected construction and configuration. Confirm the medium, temperature, pressure and end connections for the complete assembly.

ParameterSpecification
Configuration selectionReference-specific configuration required; preserve all rows for a shared bare code.
