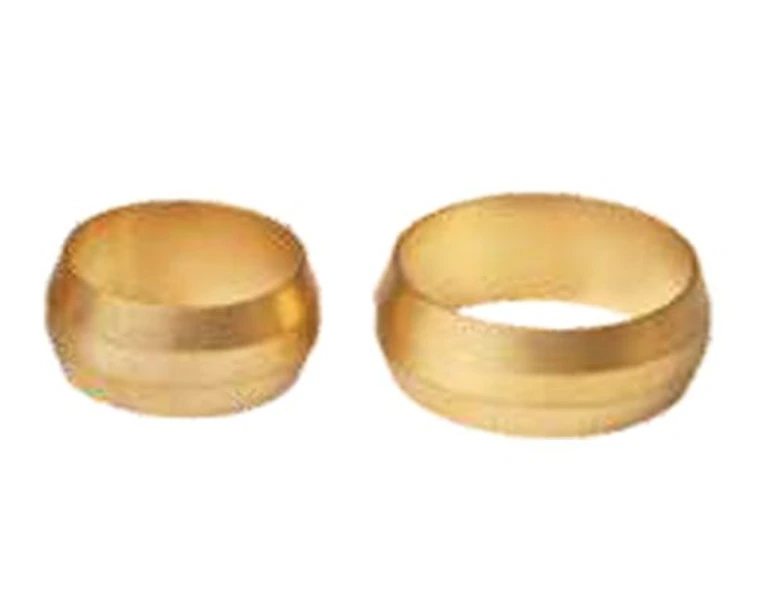

60 - COMPRESSION SLEEVE.
Connection components selected by thread, sealing form, dimensions and operating duty.
Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Thread standard, size and sealing form
Hose construction or mating connection
Material and pressure rating
Straight, elbow, tee or special configuration
compression-sleeves.
Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.
| Part code | Accepted tube outside diameter (in) |
|---|---|
| 60-02 | 1/8 |
| 60-03 | 3/16 |
| 60-04 | 1/4 |
| 60-05 | 5/16 |
| 60-06 | 3/8 |
| 60-08 | 1/2 |
| 60-10 | 5/8 |
| 60-12 | 3/4 |
compression-sleeves — construction & conditions.
Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.
| Parameter | Specification |
|---|---|
| Material | Brass; alloy grade not stated |
Live-linked compression sizes omitted in 2026 table.
Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.
| Part code | Size (in) |
|---|---|
| 60-07 | 7/16 |
