Hose Fittings & Adaptors

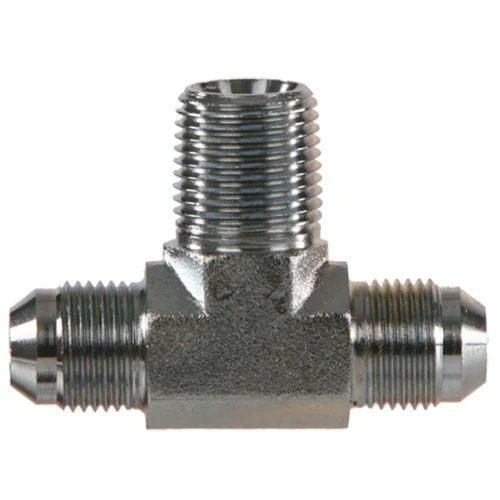

2601 - JIC/NPT BRANCH TEE.
Connection components selected by thread, sealing form, dimensions and operating duty.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Thread standard, size and sealing form
02
Hose construction or mating connection
03
Material and pressure rating
04
Straight, elbow, tee or special configuration
2601 - JIC/NPT BRANCH TEE.
Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.
| Part code | JIC nominal thread size | NPT nominal thread size |
|---|---|---|
| 2601-04-04-04 | 7/16 | 1/4 |
| 2601-06-06-04 | 9/16 | 1/4 |
| 2601-06-06-06 | 9/16 | 3/8 |
| 2601-08-08-06 | 3/4 | 3/8 |
| 2601-08-08-08 | 3/4 | 1/2 |
| 2601-12-12-12 | 1 1/16 | 3/4 |
| 2601-16-16-16 | 1 5/16 | 1 |
