Hose Fittings & Adaptors

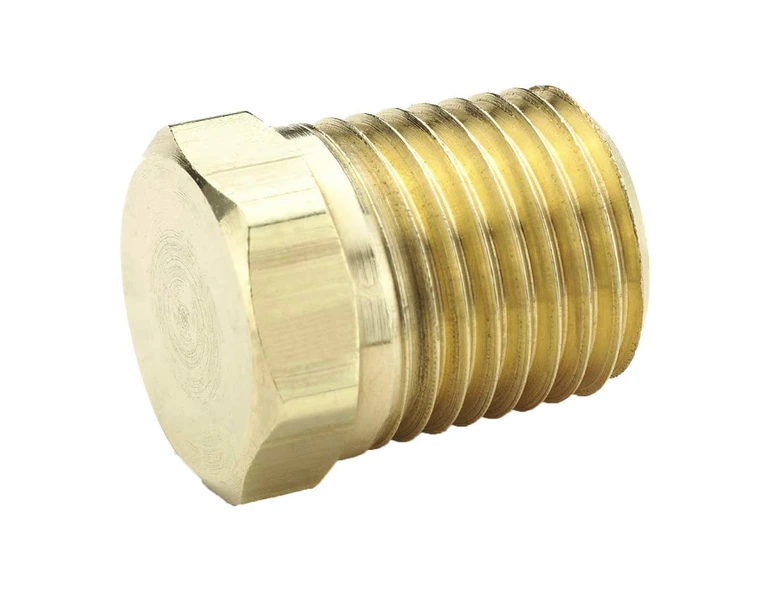

109 - Hex Stop Plug.
109 - Hex Stop Plug configurations selected for the required connection and application.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Thread standard, size and sealing form
02
Hose construction or mating connection
03
Material and pressure rating
04
Straight, elbow, tee or special configuration
male-stop-plugs.
Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.
| Part code | Thread nominal size |
|---|---|
| 109-02 | 1/8 |
| 109-04 | 1/4 |
| 109-06 | 3/8 |
| 109-08 | 1/2 |
| 109-12 | 3/4 |
male-stop-plugs — construction & conditions.
Dimensions and ratings apply to the exact configuration shown. Match the connection, material, seal and operating conditions before selection.
| Parameter | Specification |
|---|---|
| Connection genders | male stop plug |
| Pipe thread type | BSP; exact parallel/taper form not specified |
| Material | Brass; alloy grade not stated |
