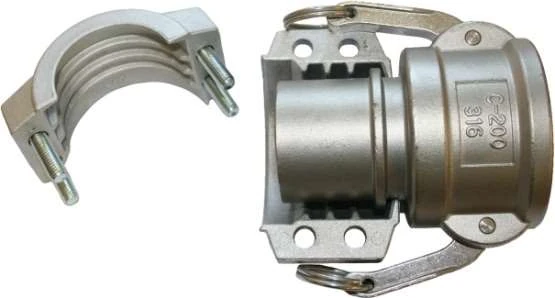

Safety-lock stainless hose clamps.
Safety-lock stainless hose clamps for securing the matched hose and tail configuration. Select the size, material and interface for the complete connection.
Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Coupling type, size and mating half
Medium, pressure and temperature
Body material and seal compound
Hose tail, thread, flange or weld connection
Construction & application.
Safety-lock hose clamp in the specified material and size range. The listed limit applies to this exact clamp construction and material. It is not a generic hose-assembly rating; confirm hose, coupling, sealing and installation compatibility.
| Parameter | Specification |
|---|---|
| Material | 316 stainless steel |
| Working pressure bar | 25 |
| Size range inch | min: 0.5; max: 4 |
DIN 2817 safety-lock stainless steel316 clamps.
DIN 2817 safety-lock stainless steel316 clamps. Use the exact hose outside-diameter window and a matching retaining tail. The 25 bar figure is the maximum range working pressure; the finished assembly is limited by its selected components and service. Temperature limits and bolt torque require the selected assembly specification.
| Part code | Nominal hose size inch | Hose size | Hose od min mm | Hose od max mm |
|---|---|---|---|---|
| RTSC012 | 0.5 | 13 x 5 | 22 | 24 |
| RTSC020 | 0.75 | 19 x 6 | 30 | 33 |
| RTSC025 | 1 | 25 x 6 | 36 | 39 |
| RTSC032 | 1.25 | 32 x 6 | 43 | 46 |
| RTSC040 | 1.5 | 38 x 6.5 | 50 | 53 |
| RTSC050 | 2 | 50 x 8 | 63 | 67 |
| RTSC051 | 2 | 50 x 10 | 69 | 71 |
| RTSC065 | 2.5 | 63 x 8 | 78 | 82 |
| RTSC080 | 3 | 75 x 7.5 | 89 | 93 |
| RTSC100/8 | 4 | 100 x 8 | 114 | 119 |
DIN 2817 safety-lock stainless steel316 clamps — construction & conditions.
DIN 2817 safety-lock stainless steel316 clamps. Use the exact hose outside-diameter window and a matching retaining tail. The 25 bar figure is the maximum range working pressure; the finished assembly is limited by its selected components and service. Temperature limits and bolt torque require the selected assembly specification.
| Parameter | Specification |
|---|---|
| Material | Stainless steel316 |
| Interface standard | DIN2817 |
| Maximum working pressure bar | 25 |
