Lever-lock coupling pattern P - male end plug.
Lever-lock coupling pattern P - male end plug for lever-lock hose and pipework connections. Select the size, material and interface for the complete connection.
Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Coupling type, size and mating half
Medium, pressure and temperature
Body material and seal compound
Hose tail, thread, flange or weld connection

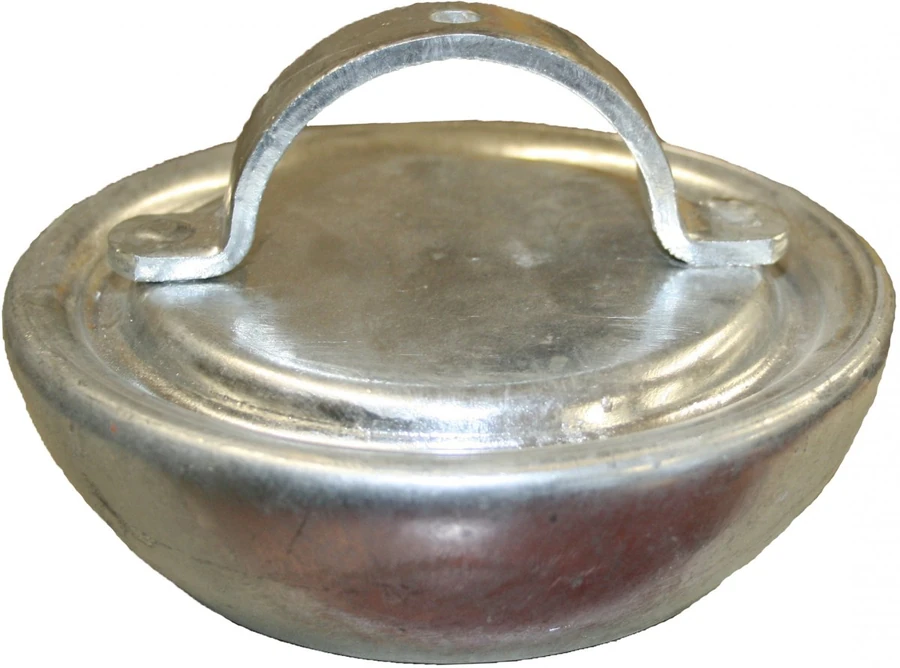

Lever-lock pattern P — male plug.
Lever-lock pattern P — male plug. The10 bar maximum working pressure applies to the galvanized mild-steel pattern P construction shown; temperature and medium conditions require confirmation. KVG/KVS/KVF/KMS/KMG/KMF/KXV/KXM and QC references identify configurations, not complete size-specific ordering codes. Head sizes and dimensional reference pairs are nominal designations, not measured bore/OD.
| Part code | Material | Nominal head size inch | Max working pressure bar | Configuration reference | Dimensional reference |
|---|---|---|---|---|---|
| PFM050 | Galvanized mild steel | 2.0 | 10 | KXV QC8 | 50X50 |
| PFM080 | Galvanized mild steel | 3.0 | 10 | KXV QC8 | 89X80 |
| PFM100 | Galvanized mild steel | 4.0 | 10 | KXV QC8 | 108X100 |
| PFM150 | Galvanized mild steel | 6.0 | 10 | KXV QC8 | 159X150 |
