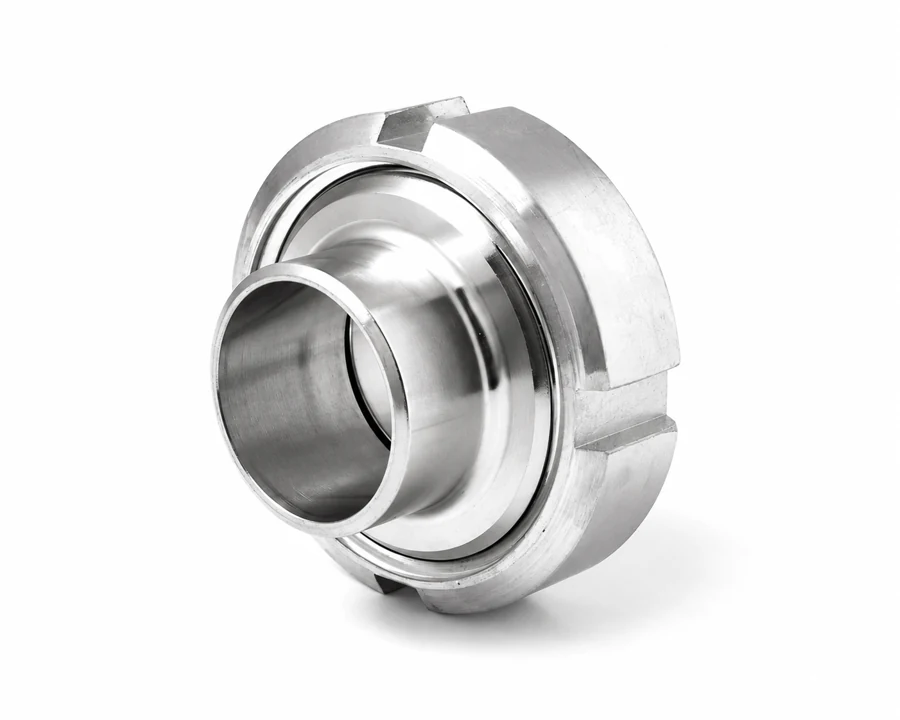

DIN-type weld/weld hygienic unions.
DIN-type weld/weld hygienic unions. The 130°C maximum applies to this AISI 304/rubber-gasket union construction; it does not establish a pressure rating. Match the exact interface type and drawn D1, D2 and B dimensions; material and hygiene documentation require selection.
| Configuration | D1 — bore (mm) | D2 — coupling outside diameter (mm) | B — axial length (mm) | Nominal diameter mm |
|---|---|---|---|---|
| DIN-type weld/weld hygienic union | 10 | 38 | 34 | 10 |
| DIN-type weld/weld hygienic union | 15 | 44 | 34 | 15 |
| DIN-type weld/weld hygienic union | 20 | 54 | 36 | 20 |
| DIN-type weld/weld hygienic union | 26 | 63 | 45 | 25 |
| DIN-type weld/weld hygienic union | 32 | 70 | 51 | 32 |
| DIN-type weld/weld hygienic union | 38 | 78 | 53 | 40 |
| DIN-type weld/weld hygienic union | 50 | 92 | 57 | 50 |
| DIN-type weld/weld hygienic union | 66 | 112 | 65 | 65 |
| DIN-type weld/weld hygienic union | 81 | 127 | 75 | 80 |
| DIN-type weld/weld hygienic union | 100 | 148 | 89 | 100 |
| DIN-type weld/weld hygienic union | 125 | 178 | 70 | 125 |
| DIN-type weld/weld hygienic union | 150 | 210 | 76 | 150 |
DIN-type weld/weld hygienic unions — construction & conditions.
DIN-type weld/weld hygienic unions. The 130°C maximum applies to this AISI 304/rubber-gasket union construction; it does not establish a pressure rating. Match the exact interface type and drawn D1, D2 and B dimensions; material and hygiene documentation require selection.
| Parameter | Specification |
|---|---|
| Body material | AISI304stainless steel |
| Gasket material | Rubber; compound to be confirmed |
| Maximum temperature c | 130 |
| Components | Liner / Male part / Nut / Gasket |
SMS-type weld/weld hygienic unions.
SMS-type weld/weld hygienic unions. The 130°C maximum applies to this AISI 304/rubber-gasket union construction; it does not establish a pressure rating. Match the exact interface type and drawn D1, D2 and B dimensions; material and hygiene documentation require selection.
| Configuration | D1 — bore (mm) | D2 — coupling outside diameter (mm) | B — axial length (mm) | Nominal diameter mm |
|---|---|---|---|---|
| SMS-type weld/weld hygienic union | 25.4 | 51 | 23.5 | 25 |
| SMS-type weld/weld hygienic union | 38.1 | 74 | 30 | 38 |
| SMS-type weld/weld hygienic union | 50.8 | 84 | 30 | 51 |
| SMS-type weld/weld hygienic union | 63.5 | 100 | 34 | 63.5 |
| SMS-type weld/weld hygienic union | 76.2 | 114 | 35 | 76 |
| SMS-type weld/weld hygienic union | 101.6 | 154 | 48 | 101.6 |
SMS-type weld/weld hygienic unions — construction & conditions.
SMS-type weld/weld hygienic unions. The 130°C maximum applies to this AISI 304/rubber-gasket union construction; it does not establish a pressure rating. Match the exact interface type and drawn D1, D2 and B dimensions; material and hygiene documentation require selection.
| Parameter | Specification |
|---|---|
| Body material | AISI304stainless steel |
| Gasket material | Rubber; compound to be confirmed |
| Maximum temperature c | 130 |
| Components | Liner / Male part / Nut / Gasket |
ISO-DS-type weld/weld hygienic unions.
ISO-DS-type weld/weld hygienic unions. The 130°C maximum applies to this AISI 304/rubber-gasket union construction; it does not establish a pressure rating. Match the exact interface type and drawn D1, D2 and B dimensions; material and hygiene documentation require selection. ISO-DS nominal labels are preserved ; no incorrect millimetre unit is assigned to the 1–4 labels.
| Configuration | D1 — bore (mm) | D2 — coupling outside diameter (mm) | B — axial length (mm) | Nominal size |
|---|---|---|---|---|
| ISO-DS-type weld/weld hygienic union | 25.4 | 57 | 36 | 1 |
| ISO-DS-type weld/weld hygienic union | 38.1 | 71 | 38 | 1½ |
| ISO-DS-type weld/weld hygienic union | 51 | 86 | 40 | 2 |
| ISO-DS-type weld/weld hygienic union | 63.5 | 103 | 46 | 2½ |
| ISO-DS-type weld/weld hygienic union | 76.2 | 115 | 48 | 3 |
| ISO-DS-type weld/weld hygienic union | 101.6 | 147 | 48 | 4 |
ISO-DS-type weld/weld hygienic unions — construction & conditions.
ISO-DS-type weld/weld hygienic unions. The 130°C maximum applies to this AISI 304/rubber-gasket union construction; it does not establish a pressure rating. Match the exact interface type and drawn D1, D2 and B dimensions; material and hygiene documentation require selection. ISO-DS nominal labels are preserved ; no incorrect millimetre unit is assigned to the 1–4 labels.
| Parameter | Specification |
|---|---|
| Body material | AISI304stainless steel |
| Gasket material | Rubber; compound to be confirmed |
| Maximum temperature c | 130 |
| Components | Liner / Male part / Nut / Gasket |
