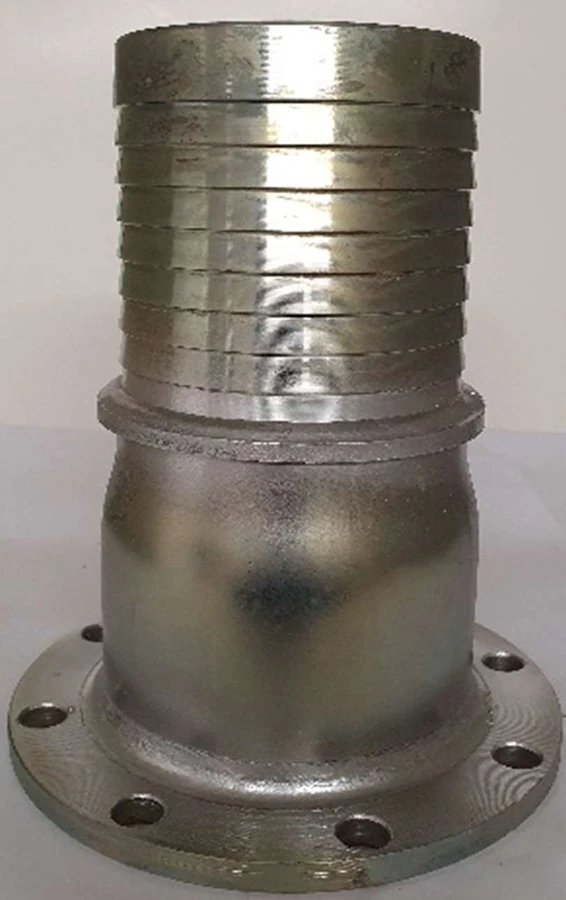

Representative flanged hose nipples configuration
AFRICAN HOSE SOLUTIONSREPRESENTATIVE CONFIGURATION
Couplings & Clamps

Flanged hose nipples.

Flanged hose nipples for connecting compatible hose and pipework. Select the size, material and interface for the complete connection.

Download product datasheet No public pricing. Configuration and availability confirmed by quotation.

Need help matching this part?
Speak to our technical team

SPECIFY WITH CONFIDENCE

Get the right configuration.

Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.

01

Coupling type, size and mating half

02

Medium, pressure and temperature

03

Body material and seal compound

04

Hose tail, thread, flange or weld connection

CONFIGURATION DATA

Flanged hose nipples.

Flanged hose nipples. Range values describe the named configuration; intermediate sizes or material combinations are not inferred. Confirm exact interface, seal and operating duty for the assembly.

Material optionsSize range inch
Galvanized mild steel / Stainless steel2 / 12
CONFIGURATION DATA

Flanged hose nipples — exact configurations.

Flanged hose nipples — exact configurations. Match flange drilling, face, material and the mating component. A flange interface or class does not establish the complete hose-assembly pressure rating. No flange thickness or bolt dimensions are inferred from the interface label.

Part codeNominal hose size inchMaterialFlange interfaceFlange faceRetaining collar
SNF60401.5Galvanized mild steelTable DConfirmConfirm
SNF60502Galvanized mild steelTable DConfirmConfirm
SNF60652.5Galvanized mild steelTable DConfirmConfirm
SNF60803Galvanized mild steelTable DConfirmConfirm
SNF61004Galvanized mild steelTable DConfirmConfirm
SNF61255Galvanized mild steelTable DConfirmConfirm
SNF61506Galvanized mild steelTable DConfirmConfirm
SNF62008Galvanized mild steelTable DConfirmConfirm
SNF625010Galvanized mild steelTable DConfirmConfirm
SNF630012Galvanized mild steelTable DConfirmConfirm
SNF60512Galvanized mild steel1000/3ConfirmConfirm
SNF60813Galvanized mild steel1000/3ConfirmConfirm
SNF61014Galvanized mild steel1000/3ConfirmConfirm
SNF61516Galvanized mild steel1000/3ConfirmConfirm
SNF62018Galvanized mild steel1000/3ConfirmConfirm
SNF625110Galvanized mild steel1000/3ConfirmConfirm
SNF60672.5Galvanized mild steelASA150Raised faceConfirm
SNF60823Galvanized mild steelASA150Raised faceConfirm
SNF61054Galvanized mild steelASA150Raised faceConfirm
SNF61074Galvanized mild steelASA150Raised faceYes
SNF62028Galvanized mild steelASA150Raised faceConfirm
SNF61044Galvanized mild steelTTMAConfirmConfirm
SNF61064Galvanized mild steelTTMAConfirmYes
SNF90401.5Stainless steel316Table DConfirmConfirm
SNF90502Stainless steel316Table DConfirmConfirm
SNF90652.5Stainless steel316Table DConfirmConfirm
SNF90803Stainless steel316Table DConfirmConfirm
SNF91004Stainless steel316Table DConfirmConfirm
SNF91255Stainless steel316Table DConfirmConfirm
SNF91506Stainless steel316Table DConfirmConfirm
SNF92008Stainless steel316Table DConfirmConfirm
SNF91044Stainless steel316TTMAConfirmConfirm
