Couplings & Clamps

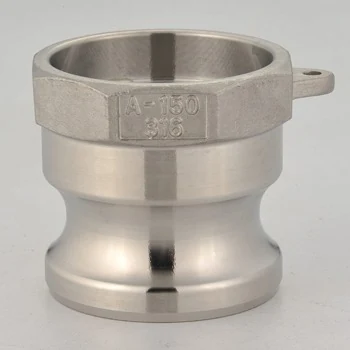

Stainless steel socket-weld camlock type A.
Stainless steel socket-weld camlock type A for cam-and-groove hose and pipe connections. Select the size, material and interface for the complete connection.
Download product datasheet No public pricing. Configuration and availability confirmed by quotation.
Need help matching this part?
Speak to our technical team
SPECIFY WITH CONFIDENCE
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
01
Coupling type, size and mating half
02
Medium, pressure and temperature
03
Body material and seal compound
04
Hose tail, thread, flange or weld connection
316 stainless camlock weldon a.
316 stainless camlock weldon a. Weld-end compatibility, pipe schedule and weld procedure must match the selected assembly. No pressure rating is transferred from another camlock construction. Confirm both end sizes for SAS125 and SAS150 before manufacture.
| Part code | Material | Nominal size inch | Weld end | Pipe schedule |
|---|---|---|---|---|
| ASW012 | Stainless steel 316 | 0.5 | Socket weld | Confirm |
| ASW020 | Stainless steel 316 | 0.75 | Socket weld | Confirm |
| ASW025 | Stainless steel 316 | 1.0 | Socket weld | 40 |
| ASW032 | Stainless steel 316 | 1.25 | Socket weld | 40 |
| ASW040 | Stainless steel 316 | 1.5 | Socket weld | 40 |
| ASW050 | Stainless steel 316 | 2.0 | Socket weld | 40 |
| ASW065 | Stainless steel 316 | 2.5 | Socket weld | 40 |
| ASW080 | Stainless steel 316 | 3.0 | Socket weld | 40 |
| ASW100 | Stainless steel 316 | 4.0 | Socket weld | 40 |
