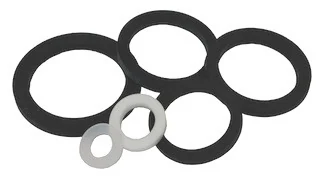

Camlock replacement seals.
Camlock replacement seals for cam-and-groove hose and pipe connections. Select the size, material and interface for the complete connection.
Need help matching this part?
Speak to our technical team
Get the right configuration.
Final specifications, compatibility and availability are confirmed against your selected part and operating conditions.
Coupling type, size and mating half
Medium, pressure and temperature
Body material and seal compound
Hose tail, thread, flange or weld connection
Camlock replacement seals — NBR.
Camlock replacement seals — NBR. Temperature ranges describe these gasket compounds, not the complete coupling or a guaranteed chemical-pressure-temperature combination. Select compound, medium, concentration, seal profile and mechanical fit together. Colour marking alone is not sufficient identification for replacement.
| Part code | Seal material | Nominal size inch | Metric designation mm | Compound temperature min c (°C) | Compound temperature max c (°C) |
|---|---|---|---|---|---|
| RWB050 | NBR | 0.5 | 12.0 | -50 | 120 |
| RWB075 | NBR | 0.75 | 20.0 | -50 | 120 |
| RWB100 | NBR | 1.0 | 25.0 | -50 | 120 |
| RWB125 | NBR | 1.25 | 32.0 | -50 | 120 |
| RWB150 | NBR | 1.5 | 40.0 | -50 | 120 |
| RWB200 | NBR | 2.0 | 50.0 | -50 | 120 |
| RWB250 | NBR | 2.5 | 65.0 | -50 | 120 |
| RWB300 | NBR | 3.0 | 80.0 | -50 | 120 |
| RWB400 | NBR | 4.0 | 100.0 | -50 | 120 |
| RWB500 | NBR | 5.0 | 125.0 | -50 | 120 |
| RWB600 | NBR | 6.0 | 150.0 | -50 | 120 |
Camlock replacement seals — Chloroprene.
Camlock replacement seals — Chloroprene. Temperature ranges describe these gasket compounds, not the complete coupling or a guaranteed chemical-pressure-temperature combination. Select compound, medium, concentration, seal profile and mechanical fit together. Colour marking alone is not sufficient identification for replacement.
| Part code | Seal material | Nominal size inch | Metric designation mm | Compound temperature min c (°C) | Compound temperature max c (°C) |
|---|---|---|---|---|---|
| RWN050 | Chloroprene | 0.5 | 12.0 | -50 | 110 |
| RWN075 | Chloroprene | 0.75 | 20.0 | -50 | 110 |
| RWN100 | Chloroprene | 1.0 | 25.0 | -50 | 110 |
| RWN125 | Chloroprene | 1.25 | 32.0 | -50 | 110 |
| RWN150 | Chloroprene | 1.5 | 40.0 | -50 | 110 |
| RWN200 | Chloroprene | 2.0 | 50.0 | -50 | 110 |
| RWN250 | Chloroprene | 2.5 | 65.0 | -50 | 110 |
| RWN300 | Chloroprene | 3.0 | 80.0 | -50 | 110 |
| RWN400 | Chloroprene | 4.0 | 100.0 | -50 | 110 |
| RWN500 | Chloroprene | 5.0 | 125.0 | -50 | 110 |
| RWN600 | Chloroprene | 6.0 | 150.0 | -50 | 110 |
Camlock replacement seals — EPDM.
Camlock replacement seals — EPDM. Temperature ranges describe these gasket compounds, not the complete coupling or a guaranteed chemical-pressure-temperature combination. Select compound, medium, concentration, seal profile and mechanical fit together. Colour marking alone is not sufficient identification for replacement.
| Part code | Seal material | Nominal size inch | Metric designation mm | Compound temperature min c (°C) | Compound temperature max c (°C) |
|---|---|---|---|---|---|
| RWE050 | EPDM | 0.5 | 12.0 | -40 | 145 |
| RWE075 | EPDM | 0.75 | 20.0 | -40 | 145 |
| RWE100 | EPDM | 1.0 | 25.0 | -40 | 145 |
| RWE125 | EPDM | 1.25 | 32.0 | -40 | 145 |
| RWE150 | EPDM | 1.5 | 40.0 | -40 | 145 |
| RWE200 | EPDM | 2.0 | 50.0 | -40 | 145 |
| RWE250 | EPDM | 2.5 | 65.0 | -40 | 145 |
| RWE300 | EPDM | 3.0 | 80.0 | -40 | 145 |
| RWE400 | EPDM | 4.0 | 100.0 | -40 | 145 |
| RWE500 | EPDM | 5.0 | 125.0 | -40 | 145 |
| RWE600 | EPDM | 6.0 | 150.0 | -40 | 145 |
Camlock replacement seals — PTFE envelope / NBR core.
Camlock replacement seals — PTFE envelope / NBR core. Temperature ranges describe these gasket compounds, not the complete coupling or a guaranteed chemical-pressure-temperature combination. Select compound, medium, concentration, seal profile and mechanical fit together. Colour marking alone is not sufficient identification for replacement.
| Part code | Seal material | Nominal size inch | Metric designation mm | Compound temperature min c (°C) | Compound temperature max c (°C) |
|---|---|---|---|---|---|
| RWTE050 | PTFE envelope / NBR core | 0.5 | 12.0 | -40 | 120 |
| RWTE075 | PTFE envelope / NBR core | 0.75 | 20.0 | -40 | 120 |
| RWTE100 | PTFE envelope / NBR core | 1.0 | 25.0 | -40 | 120 |
| RWTE125 | PTFE envelope / NBR core | 1.25 | 32.0 | -40 | 120 |
| RWTE150 | PTFE envelope / NBR core | 1.5 | 40.0 | -40 | 120 |
| RWTE200 | PTFE envelope / NBR core | 2.0 | 50.0 | -40 | 120 |
| RWTE250 | PTFE envelope / NBR core | 2.5 | 65.0 | -40 | 120 |
| RWTE300 | PTFE envelope / NBR core | 3.0 | 80.0 | -40 | 120 |
| RWTE400 | PTFE envelope / NBR core | 4.0 | 100.0 | -40 | 120 |
| RWTE500 | PTFE envelope / NBR core | 5.0 | 125.0 | -40 | 120 |
| RWTE600 | PTFE envelope / NBR core | 6.0 | 150.0 | -40 | 120 |
Camlock replacement seals — Silicone.
Camlock replacement seals — Silicone. Temperature ranges describe these gasket compounds, not the complete coupling or a guaranteed chemical-pressure-temperature combination. Select compound, medium, concentration, seal profile and mechanical fit together. Colour marking alone is not sufficient identification for replacement.
| Part code | Seal material | Nominal size inch | Metric designation mm | Compound temperature min c (°C) | Compound temperature max c (°C) |
|---|---|---|---|---|---|
| RWSI012 | Silicone | 0.5 | 12.0 | -70 | 250 |
| RWSI020 | Silicone | 0.75 | 20.0 | -70 | 250 |
| RWSI025 | Silicone | 1.0 | 25.0 | -70 | 250 |
| RWSI032 | Silicone | 1.25 | 32.0 | -70 | 250 |
| RWSI040 | Silicone | 1.5 | 40.0 | -70 | 250 |
| RWSI050 | Silicone | 2.0 | 50.0 | -70 | 250 |
| RWSI065 | Silicone | 2.5 | 65.0 | -70 | 250 |
| RWSI080 | Silicone | 3.0 | 80.0 | -70 | 250 |
| RWSI100 | Silicone | 4.0 | 100.0 | -70 | 250 |
| RWSI125 | Silicone | 5.0 | 125.0 | -70 | 250 |
| RWSI150 | Silicone | 6.0 | 150.0 | -70 | 250 |
Camlock replacement seals — FKM.
Camlock replacement seals — FKM. Temperature ranges describe these gasket compounds, not the complete coupling or a guaranteed chemical-pressure-temperature combination. Select compound, medium, concentration, seal profile and mechanical fit together. Colour marking alone is not sufficient identification for replacement.
| Part code | Seal material | Nominal size inch | Metric designation mm | Compound temperature min c (°C) | Compound temperature max c (°C) |
|---|---|---|---|---|---|
| RWV050 | FKM | 0.5 | 12.0 | -20 | 200 |
| RWV075 | FKM | 0.75 | 20.0 | -20 | 200 |
| RWV100 | FKM | 1.0 | 25.0 | -20 | 200 |
| RWV125 | FKM | 1.25 | 32.0 | -20 | 200 |
| RWV150 | FKM | 1.5 | 40.0 | -20 | 200 |
| RWV200 | FKM | 2.0 | 50.0 | -20 | 200 |
| RWV250 | FKM | 2.5 | 65.0 | -20 | 200 |
| RWV300 | FKM | 3.0 | 80.0 | -20 | 200 |
| RWV400 | FKM | 4.0 | 100.0 | -20 | 200 |
| RWV500 | FKM | 5.0 | 125.0 | -20 | 200 |
| RWV600 | FKM | 6.0 | 150.0 | -20 | 200 |
Camlock replacement seals — PTFE.
Camlock replacement seals — PTFE. Temperature ranges describe these gasket compounds, not the complete coupling or a guaranteed chemical-pressure-temperature combination. Select compound, medium, concentration, seal profile and mechanical fit together. Colour marking alone is not sufficient identification for replacement.
| Part code | Seal material | Nominal size inch | Metric designation mm | Compound temperature min c (°C) | Compound temperature max c (°C) |
|---|---|---|---|---|---|
| RWF050 | PTFE | 0.5 | 12.0 | -25 | 100 |
| RWF250 | PTFE | 2.5 | 65.0 | -25 | 100 |
| RWF075 | PTFE | 0.75 | 20.0 | -25 | 100 |
| RWF300 | PTFE | 3.0 | 80.0 | -25 | 100 |
| RWF100 | PTFE | 1.0 | 25.0 | -25 | 100 |
| RWF400 | PTFE | 4.0 | 100.0 | -25 | 100 |
| RWF125 | PTFE | 1.25 | 32.0 | -25 | 100 |
| RWF500 | PTFE | 5.0 | 125.0 | -25 | 100 |
| RWF150 | PTFE | 1.5 | 40.0 | -25 | 100 |
| RWF600 | PTFE | 6.0 | 150.0 | -25 | 100 |
| RWF200 | PTFE | 2.0 | 50.0 | -25 | 100 |
Illustrated flat camlock gasket profile.
Illustrated flat camlock gasket profile. Dimensions apply to the illustrated flat-gasket profile. Verify the selected material and envelope/profile geometry before fitting; these dimensions are not assigned to every seal code.
| Nominal designation mm | Nominal designation inch | Gasket od mm | Gasket id mm | Gasket thickness mm |
|---|---|---|---|---|
| 15 | 0.5 | 26 | 17 | 4 |
| 20 | 0.75 | 35 | 22 | 5.54 |
| 25 | 1 | 40 | 27 | 6.35 |
| 32 | 1.25 | 49 | 35 | 6.35 |
| 40 | 1.5 | 56 | 41 | 6.35 |
| 50 | 2 | 67 | 51 | 6.35 |
| 65 | 2.5 | 79 | 60 | 6.35 |
| 80 | 3 | 94 | 76 | 6.35 |
| 100 | 4 | 124 | 102 | 6.35 |
| 125 | 5 | 149 | 124 | 6.35 |
| 150 | 6 | 180 | 154 | 6.35 |
